1.Main Technical Parameters
Model | Customize 2700 | ||
Running line speed | Machinery | 150m/min | |
Production | 80-120m/min | ||
Suitable type of base material | Mainly for the PP woven √ | ||
Non-woven ,paper √ | |||
Plastic film, foil □ | |||
Suitable type of extruding resin | PE, PP, EVA (Color masterbatch \ modifier, etc.) | ||
TPU □ | |||
PVC □ | |||
Line process
Line process | Unwinding | Max diameter | Ø1500mm |
Structure | Horizontal duplex | ||
Construct | Shaftless roller changing | ||
Tension control | Magnetic brake 400N | ||
Web guide | Photoelectric & hydraulic corrective | ||
Pre-heating #1 | Structure | U-style | |
Heating method | U-tube internal electric heating | ||
Heat transfer medium | Heat transfer oil | ||
Water squeeze #1 | Structure | Double roller squeeze | |
Pressure source | Pneumatic cylinder(side angle) | ||
Pressure mode | Pressure roller & back pressure roller | ||
Moisture treatment | Water collection tray | ||
Water squeeze #2 | Structure | ABABA five-roller structure | |
Pressure source | Pneumatic cylinder(vertical angle) | ||
Pressure mode | Pressure roller & support roll | ||
Moisture treatment | Water collection tray | ||
Pre-heating #2 | Structure | 45 degrees double center impression | |
Heating method | U-tube internal electric heating | ||
Heat transfer medium | Heat transfer oil | ||
Extrusion #1 | Type | Extrusion laminating | |
Corona treatment | No need / optional | ||
Cooling device group | Structure | ABA three-roller structure | |
Cooling method | Circulating cold water | ||
Unwinding #2 | Max diameter | Ø1200mm | |
Structure | Horizontal duplex | ||
Construct | Shaft roller changing | ||
Tension control | Magnetic brake 200N | ||
Web guide | Photoelectric & hydraulic corrective | ||
Extrusion #2 | Type | Extrusion coating | |
Corona treatment | No need / optional | ||
Slitting | Structure | ABAB four-roller structure | |
Rewinding | Max diameter | Ø1500mm | |
Structure | Impression roller & shaft | ||
Construct | 60mm solid steel wallboard | ||
Rolling way | Surface friction | ||
Rolling changing | Horizontal automatic | ||
Web guide precision | ±1.0mm | ||
Tension range | 0-400N | ||
Web overturn & slitting & stitching | Unwinding | Semi-automatic splicing | |
Turning device | Gantry reversal | ||
Laminating unit | Waste edge slitting & blowing device | ||
Slitting | DC motor drive | ||
Rewinding | Automatic pneumatic cutter | ||
Operational automation degree | Main control | Integrated distribution cabinet PLC touch screen control | |
Unwinding #1 | Separate control & web semi-automatic splicing | ||
Extrusion unit | Temperature monitoring & control | ||
Unwinding #2 | Web semi-automatic splicing | ||
Rewinding unit | Cutting & roll changing | ||
Total power | Theoretical maximum | 350kw | |
Stable running | ≈170kw | ||
Total weight | 28000kg (±5%) | ||
Overall size | 21.5M(L) * 9.8M(W) * 4.5M(H) |

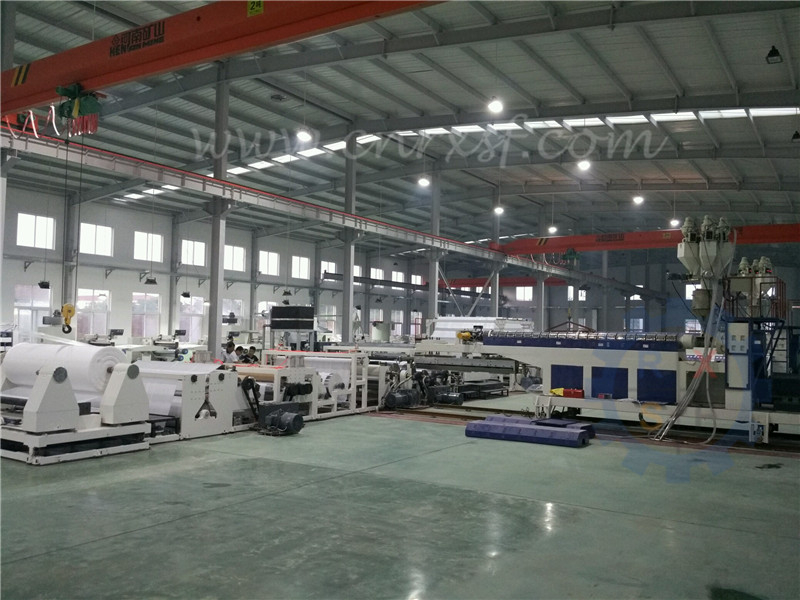

2.Comprehensive Description
This is a special custom machine, and its design concept is presented by our customers. After five months of "design - manufacturing - experiment - redesign - re - manufacture" process, we successfully created this machine and reached the production speed of 100-120m / min. The 2700mm wide, is one of the widest machines we manufacture.
It is specially designed for PP woven, with multiple water squeezing devices and drying equipment. The PP woven after treatment, first laminated with non-woven fabrics, and then coated on the other side, forming a special product, mainly exported to South Korea and Japan.
3. Product Features

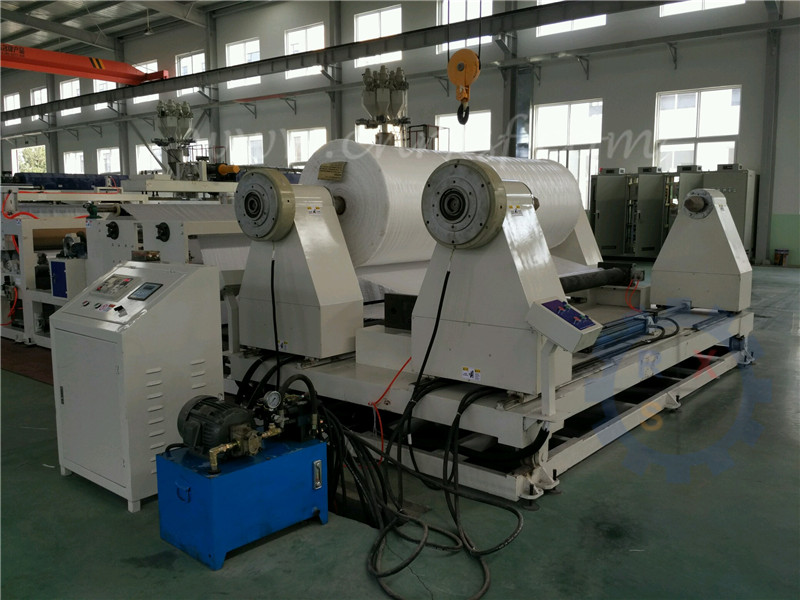

(1) Shaftless duplex unwinding, especially designed for large width & diameter PP woven roller, roller change without downtime
(2) Combination squeeze water & pretreat device, to achieve the substrate humidity less than 5% before coating
(3) World famous brand parts: Japan Yaskawa inverter, Germany Siemens PLC and motor, France Schneider low-voltage electrical appliances
(4) China's well-known brands of high-precision hardened gear box and chromium alloy T-die, pneumatic filter replacement device

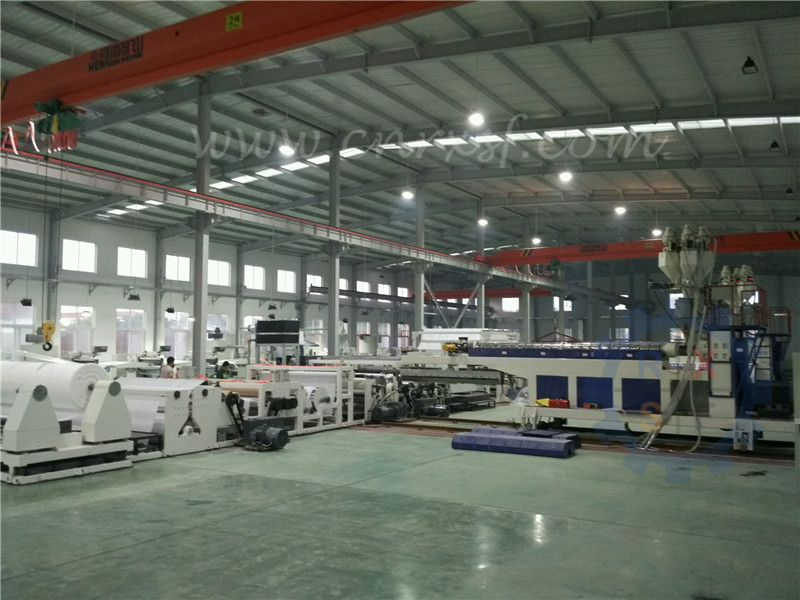

(5) One process to complete the whole "drying - extrusion lamination - extrusion coating - slitting - rewinding" process, directly to the final product
1.Main Technical Parameters
Model | Customize 2700 | ||
Running line speed | Machinery | 150m/min | |
Production | 80-120m/min | ||
Suitable type of base material | Mainly for the PP woven √ | ||
Non-woven ,paper √ | |||
Plastic film, foil □ | |||
Suitable type of extruding resin | PE, PP, EVA (Color masterbatch \ modifier, etc.) | ||
TPU □ | |||
PVC □ | |||
Line process
Line process | Unwinding | Max diameter | Ø1500mm |
Structure | Horizontal duplex | ||
Construct | Shaftless roller changing | ||
Tension control | Magnetic brake 400N | ||
Web guide | Photoelectric & hydraulic corrective | ||
Pre-heating #1 | Structure | U-style | |
Heating method | U-tube internal electric heating | ||
Heat transfer medium | Heat transfer oil | ||
Water squeeze #1 | Structure | Double roller squeeze | |
Pressure source | Pneumatic cylinder(side angle) | ||
Pressure mode | Pressure roller & back pressure roller | ||
Moisture treatment | Water collection tray | ||
Water squeeze #2 | Structure | ABABA five-roller structure | |
Pressure source | Pneumatic cylinder(vertical angle) | ||
Pressure mode | Pressure roller & support roll | ||
Moisture treatment | Water collection tray | ||
Pre-heating #2 | Structure | 45 degrees double center impression | |
Heating method | U-tube internal electric heating | ||
Heat transfer medium | Heat transfer oil | ||
Extrusion #1 | Type | Extrusion laminating | |
Corona treatment | No need / optional | ||
Cooling device group | Structure | ABA three-roller structure | |
Cooling method | Circulating cold water | ||
Unwinding #2 | Max diameter | Ø1200mm | |
Structure | Horizontal duplex | ||
Construct | Shaft roller changing | ||
Tension control | Magnetic brake 200N | ||
Web guide | Photoelectric & hydraulic corrective | ||
Extrusion #2 | Type | Extrusion coating | |
Corona treatment | No need / optional | ||
Slitting | Structure | ABAB four-roller structure | |
Rewinding | Max diameter | Ø1500mm | |
Structure | Impression roller & shaft | ||
Construct | 60mm solid steel wallboard | ||
Rolling way | Surface friction | ||
Rolling changing | Horizontal automatic | ||
Web guide precision | ±1.0mm | ||
Tension range | 0-400N | ||
Web overturn & slitting & stitching | Unwinding | Semi-automatic splicing | |
Turning device | Gantry reversal | ||
Laminating unit | Waste edge slitting & blowing device | ||
Slitting | DC motor drive | ||
Rewinding | Automatic pneumatic cutter | ||
Operational automation degree | Main control | Integrated distribution cabinet PLC touch screen control | |
Unwinding #1 | Separate control & web semi-automatic splicing | ||
Extrusion unit | Temperature monitoring & control | ||
Unwinding #2 | Web semi-automatic splicing | ||
Rewinding unit | Cutting & roll changing | ||
Total power | Theoretical maximum | 350kw | |
Stable running | ≈170kw | ||
Total weight | 28000kg (±5%) | ||
Overall size | 21.5M(L) * 9.8M(W) * 4.5M(H) |
2.Comprehensive Description
This is a special custom machine, and its design concept is presented by our customers. After five months of "design - manufacturing - experiment - redesign - re - manufacture" process, we successfully created this machine and reached the production speed of 100-120m / min. The 2700mm wide, is one of the widest machines we manufacture.
It is specially designed for PP woven, with multiple water squeezing devices and drying equipment. The PP woven after treatment, first laminated with non-woven fabrics, and then coated on the other side, forming a special product, mainly exported to South Korea and Japan.
3. Product Features
(1) Shaftless duplex unwinding, especially designed for large width & diameter PP woven roller, roller change without downtime
(2) Combination squeeze water & pretreat device, to achieve the substrate humidity less than 5% before coating
(3) World famous brand parts: Japan Yaskawa inverter, Germany Siemens PLC and motor, France Schneider low-voltage electrical appliances
(4) China's well-known brands of high-precision hardened gear box and chromium alloy T-die, pneumatic filter replacement device
(5) One process to complete the whole "drying - extrusion lamination - extrusion coating - slitting - rewinding" process, directly to the final product

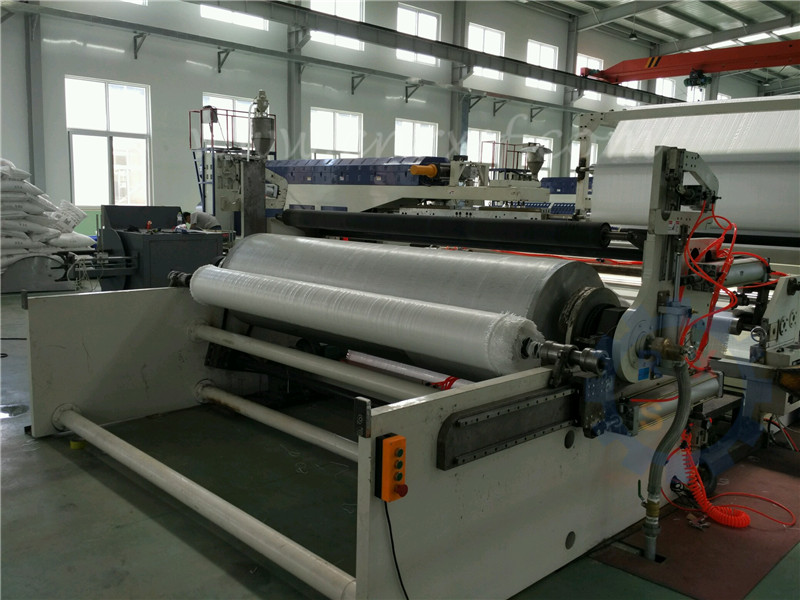

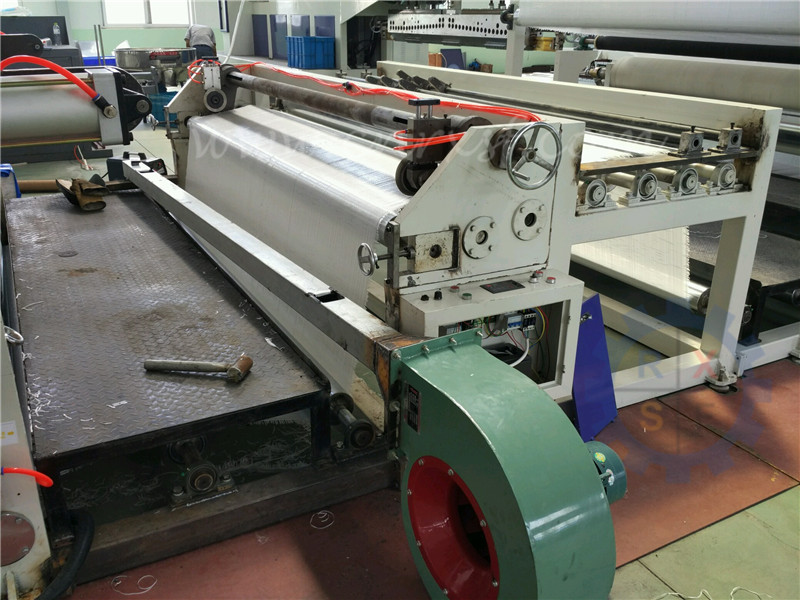

B. U structure of the #1 preheating unit, to enhance the web temperature, ready to squeeze the water:

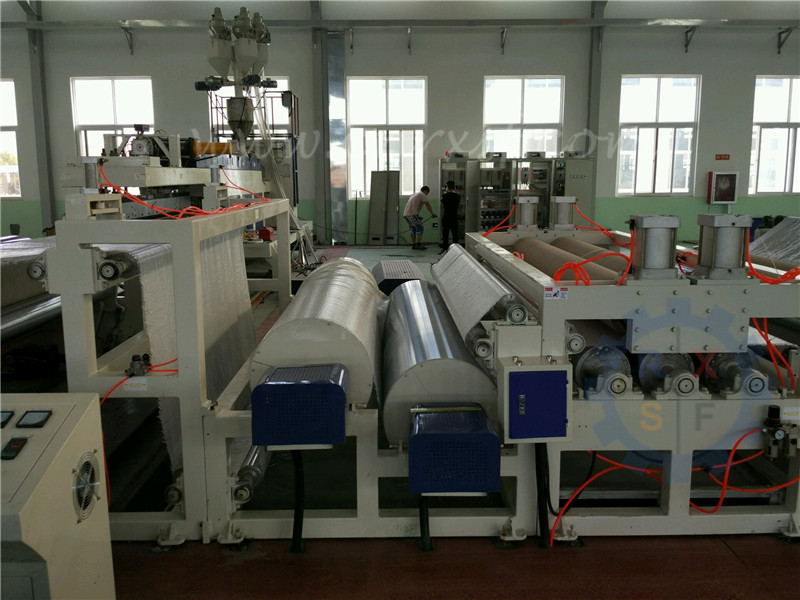

C. The first squeeze unit is designed to be angled 45 degrees with a back pressure roller, followed by the first preheat unit to complete the first drying process. After heating and squeezing, PP woven water content has been no more than 10%, and the surface has been relatively flat:

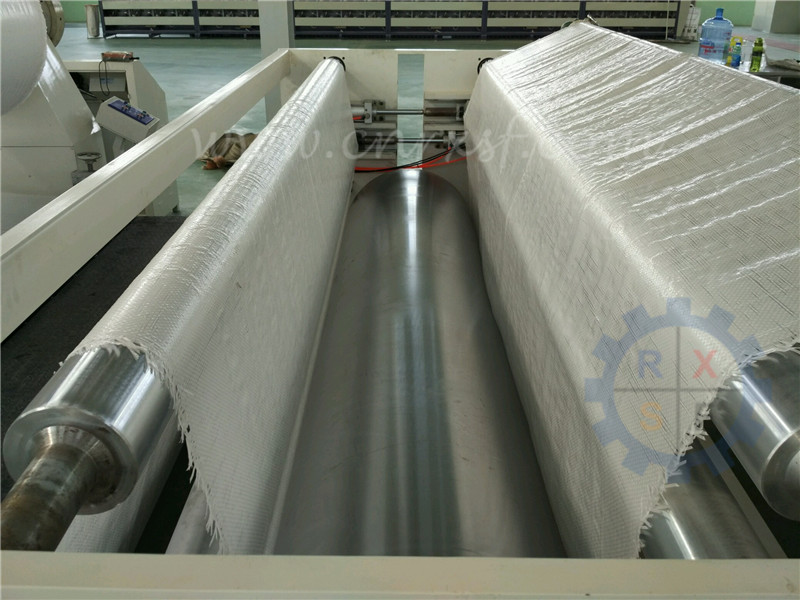

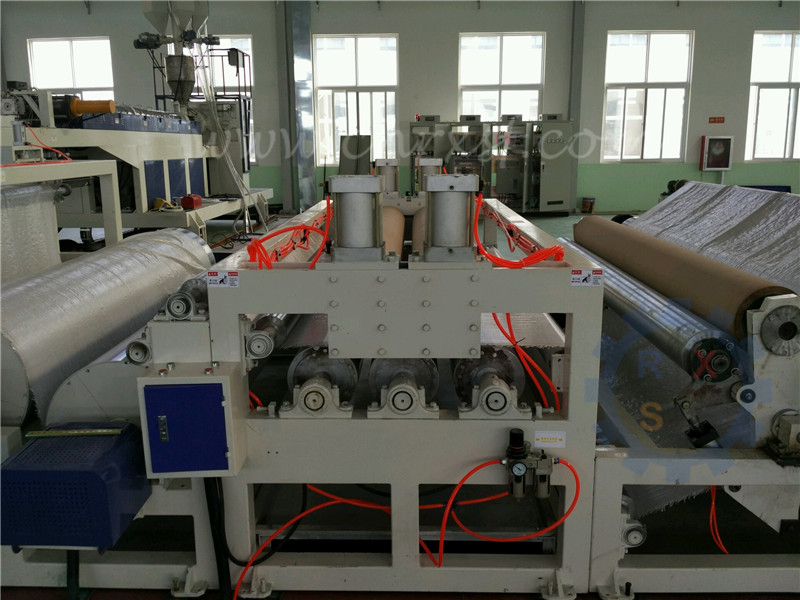

D. The second squeeze unit is designed as ABABA five-roller structure, under the pressure of the pneumatic cylinder, the substrate moisture content is further compressed to less than 3%:
E. After several rounds of water, PP woven has entered the state suitable for coating. The second preheat unit is arranged in a double center impression of 45 degrees. It will once again raise the temperature of the web and evaporate the last remaining moisture:

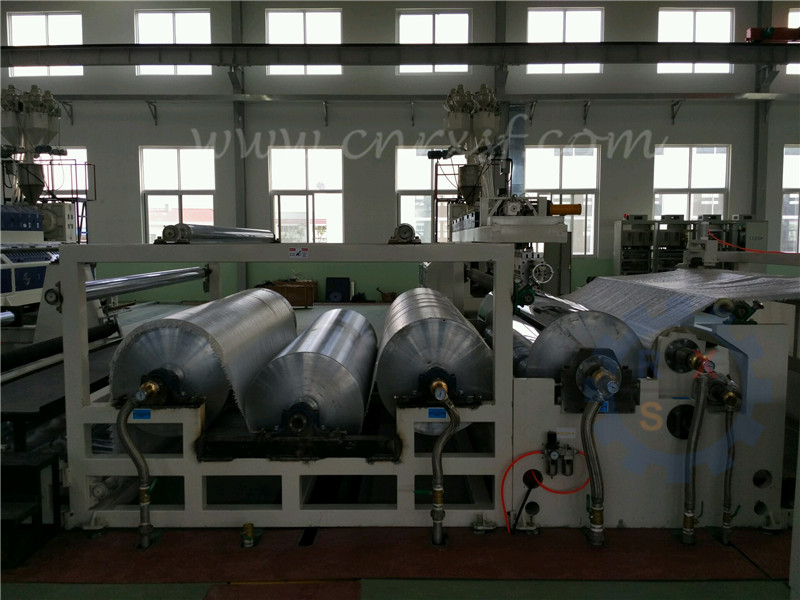

F. After first extrusion laminating, the three-roller structure cooling device group multiple cooling of the web:
G. After second extrusion coating, the ABAB four-roller structure slitting unit can provide two levels of cutting, removing the waste side while reaching the set final width:

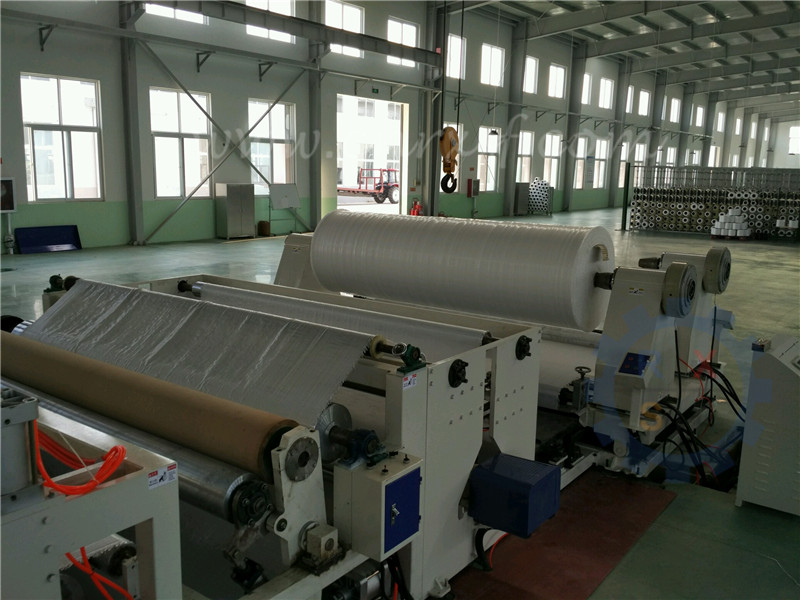

H. Automatic surface friction rewinding, to keep compact of the finished roller. With using the crane beam, loading raw roller and unloading finished product roller becomes easy:
I. Multi-function feeding device, each hopper are controlled by the "inverter - motor", can achieve accurate proportion feeding:

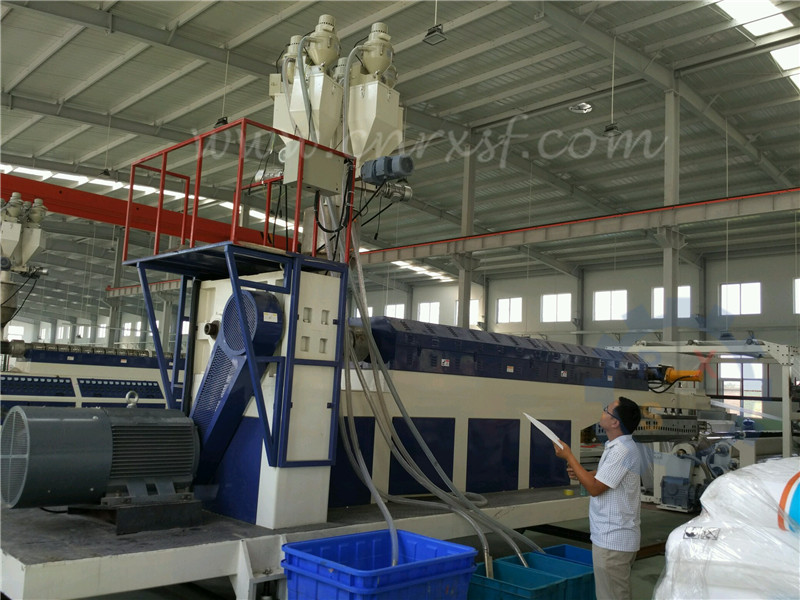

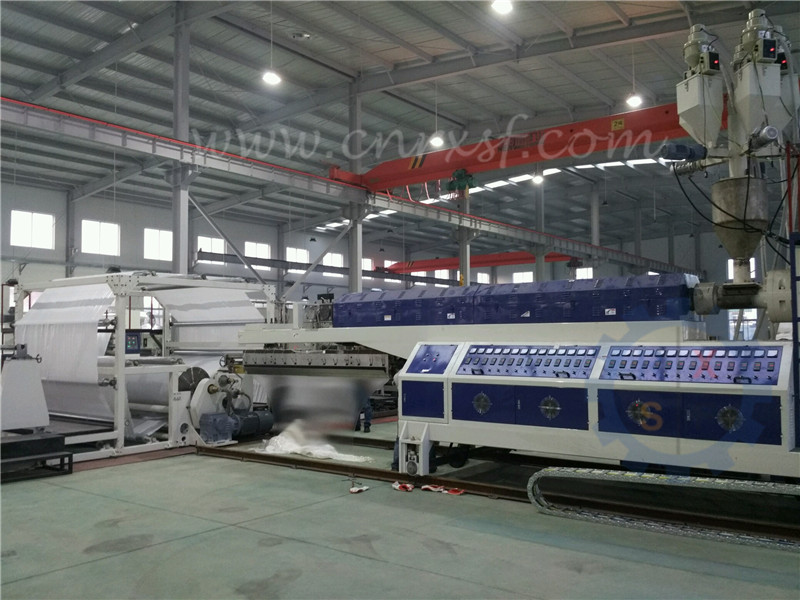

J. China's well-known brands of high-precision hardened gear box, customized 2700mm chromium alloy T-die, pneumatic filter replacement device:

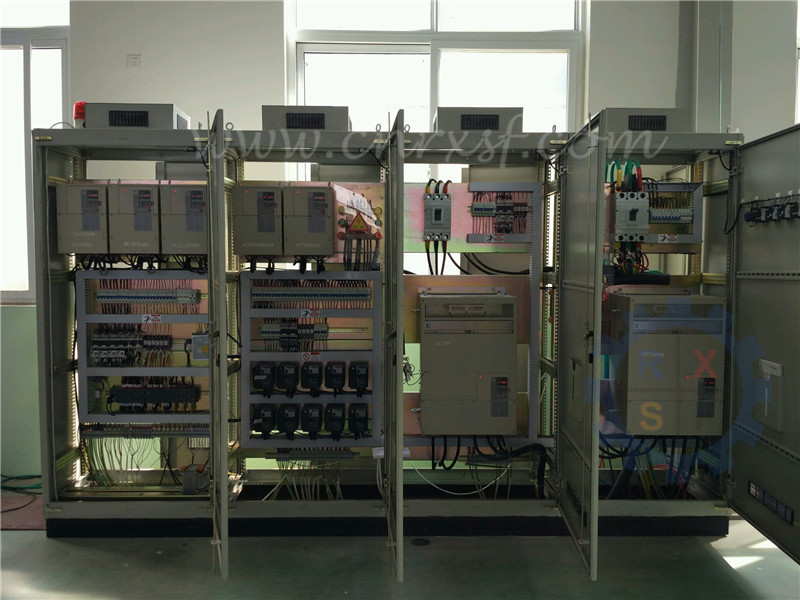

K. Integrated electric control cabinet, seven motor control system, Japan Yaskawa brand inverter, Germany Siemens brand motor, France Schneider brand low-voltage electrical appliances, Japan imported temperature control system:
Through this link to view the video: http://youtu.be/lSAeUbRkAjo
B. U structure of the #1 preheating unit, to enhance the web temperature, ready to squeeze the water:
C. The first squeeze unit is designed to be angled 45 degrees with a back pressure roller, followed by the first preheat unit to complete the first drying process. After heating and squeezing, PP woven water content has been no more than 10%, and the surface has been relatively flat:
D. The second squeeze unit is designed as ABABA five-roller structure, under the pressure of the pneumatic cylinder, the substrate moisture content is further compressed to less than 3%:
E. After several rounds of water, PP woven has entered the state suitable for coating. The second preheat unit is arranged in a double center impression of 45 degrees. It will once again raise the temperature of the web and evaporate the last remaining moisture:
F. After first extrusion laminating, the three-roller structure cooling device group multiple cooling of the web:
G. After second extrusion coating, the ABAB four-roller structure slitting unit can provide two levels of cutting, removing the waste side while reaching the set final width:
H. Automatic surface friction rewinding, to keep compact of the finished roller. With using the crane beam, loading raw roller and unloading finished product roller becomes easy:
I. Multi-function feeding device, each hopper are controlled by the "inverter - motor", can achieve accurate proportion feeding:
J. China's well-known brands of high-precision hardened gear box, customized 2700mm chromium alloy T-die, pneumatic filter replacement device:
K. Integrated electric control cabinet, seven motor control system, Japan Yaskawa brand inverter, Germany Siemens brand motor, France Schneider brand low-voltage electrical appliances, Japan imported temperature control system:
Through this link to view the video: http://youtu.be/lSAeUbRkAjo
5. Packaging and shipping

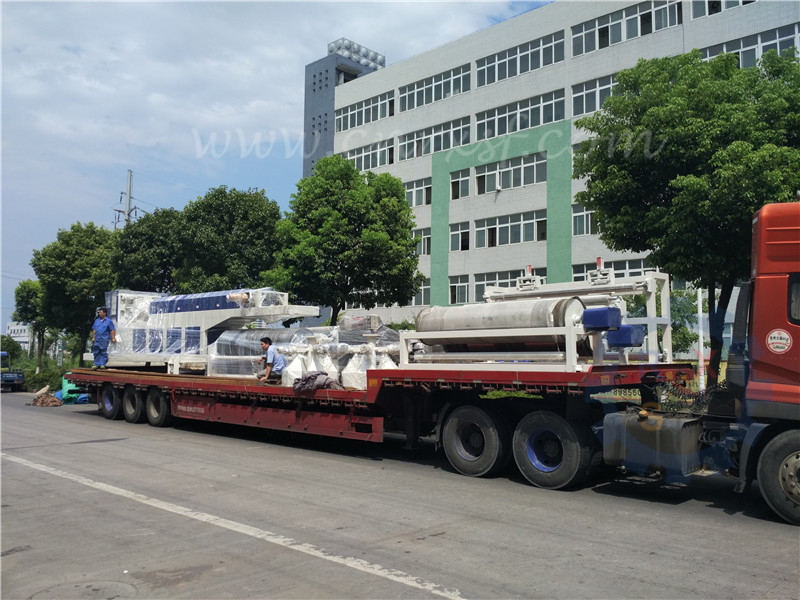

A. Brush anti-rust oil, PE stretch film wrapping, CE standard safety labels, steel wire fixed in trucks:
B. T-die, shafts and spare parts, using wooden box or separate packaging:

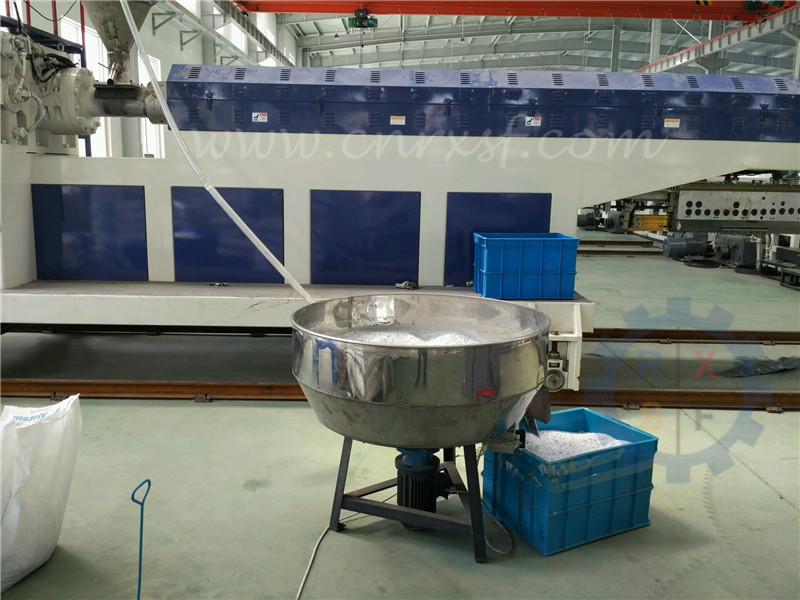

C. Ancillary equipment such as chillers, mixers, grinders, etc., we can purchase on behalf of customers and arrange to transport with the main machine:
6. Trading terms and after sales service
5. Packaging and shipping
A. Brush anti-rust oil, PE stretch film wrapping, CE standard safety labels, steel wire fixed in trucks:
B. T-die, shafts and spare parts, using wooden box or separate packaging:
C. Ancillary equipment such as chillers, mixers, grinders, etc., we can purchase on behalf of customers and arrange to transport with the main machine:
6. Trading terms and after sales service
