1.Main Technical Parameters
Model | Customize 1400 | ||
Running line speed | Machinery | 150m/min | |
LDPE coating | 50-140m/min | ||
Hoses laminating | 20-80m/min | ||
Suitable type of base material | Aluminum - plastic composite materials (main) √ | ||
Paper, Aluminum foil √ | |||
PP non-woven □ | |||
Suitable type of extruding resin | LDPE/LLDPE √ | ||
PP, EVA √ | |||
TPU, PVC □ | |||
Line process | Unwinding | Max diameter | Ø1200mm |
Structure | Horizontal duplex | ||
Rewinding | Motor/control | 11kw/ Inverter | |
Max diameter | Ø600mm | ||
Web guide precision | ±1.0mm | ||
Tension range | 0-100N | ||
Web cutting & slitting & stitching | Unwinding | Semi-automatic splicing | |
Coating unit | Waste edge slitting & blowing device | ||
Rewinding | Rodless cylinder cutter | ||
Operational automation degree | Main control cabinet | Master Control Web transmission & extrusion PLC *for options | |
Coating unit | Temperature monitoring & control | ||
Unwinding unit #1 | Web semi-automatic splicing | ||
Unwinding unit #2 | Web semi-automatic splicing | ||
Rewinding unit | Cutting device Semi-automatic roll change | ||
Total power | Theoretical maximum | 120kw | |
Stable running | ≈65kw | ||
Total weight | 14500kg (±5%) | ||
Overall size (Without extruder) | 12.5M(L) * 2.8M(W) * 2.8M(H) | ||
Overall size (With extruder ) | 12.5M(L) * 8.5M(W) * 3.2M(H) |
2.Comprehensive Description
Similar to Tetra Pak, toothpaste hoses also use multi-layer composite materials. PP / aluminum foil / PE, with extrusion lamination technology, manufacturing five / seven composite materials, with good shading, compression, fresh capacity, while able to have excellent advertising printing effect.
3. Product Features

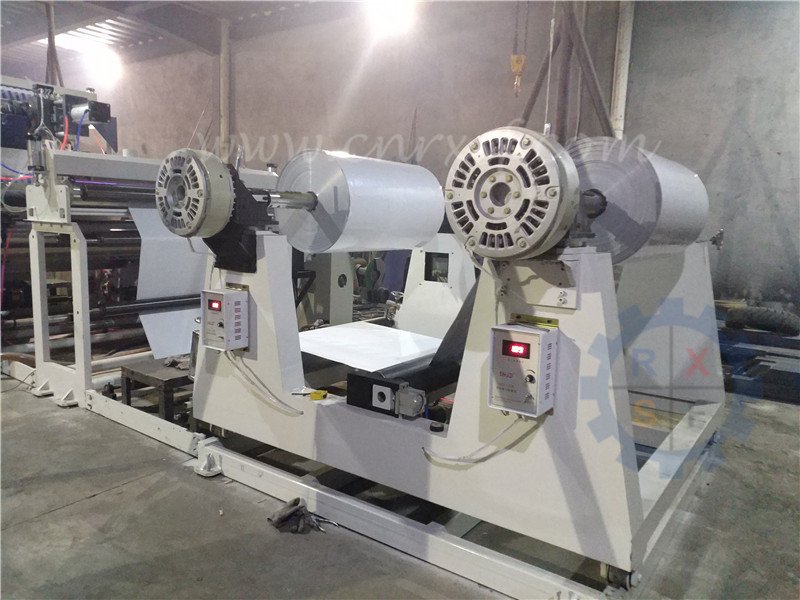

(1) Horizontal duplex station unwinding #1 and #2, with automatic web guide device, fast roller change.
(2) Double corona treatment to optimize web surface molecular structure according to demand for better adhesion.
(3) Equipped with static elimination device before the laminate, to avoid electrostatic causes of the bubble or uneven.
(4) Custom high-precision T-die, internal heating type, the minimum coating amount of 8 microns, the thickness of the error does not exceed 5%.
(5) Surface friction rewinding, adjustable pressure on both side, compact rewinding, neat edges.
1.Main Technical Parameters
Model | Customize 1400 | ||
Running line speed | Machinery | 150m/min | |
LDPE coating | 50-140m/min | ||
Hoses laminating | 20-80m/min | ||
Suitable type of base material | Aluminum - plastic composite materials (main) √ | ||
Paper, Aluminum foil √ | |||
PP non-woven □ | |||
Suitable type of extruding resin | LDPE/LLDPE √ | ||
PP, EVA √ | |||
TPU, PVC □ | |||
Line process | Unwinding | Max diameter | Ø1200mm |
Structure | Horizontal duplex | ||
Rewinding | Motor/control | 11kw/ Inverter | |
Max diameter | Ø600mm | ||
Web guide precision | ±1.0mm | ||
Tension range | 0-100N | ||
Web cutting & slitting & stitching | Unwinding | Semi-automatic splicing | |
Coating unit | Waste edge slitting & blowing device | ||
Rewinding | Rodless cylinder cutter | ||
Operational automation degree | Main control cabinet | Master Control Web transmission & extrusion PLC *for options | |
Coating unit | Temperature monitoring & control | ||
Unwinding unit #1 | Web semi-automatic splicing | ||
Unwinding unit #2 | Web semi-automatic splicing | ||
Rewinding unit | Cutting device Semi-automatic roll change | ||
Total power | Theoretical maximum | 120kw | |
Stable running | ≈65kw | ||
Total weight | 14500kg (±5%) | ||
Overall size (Without extruder) | 12.5M(L) * 2.8M(W) * 2.8M(H) | ||
Overall size (With extruder ) | 12.5M(L) * 8.5M(W) * 3.2M(H) |
2.Comprehensive Description
Similar to Tetra Pak, toothpaste hoses also use multi-layer composite materials. PP / aluminum foil / PE, with extrusion lamination technology, manufacturing five / seven composite materials, with good shading, compression, fresh capacity, while able to have excellent advertising printing effect.
3. Product Features
(1) Horizontal duplex station unwinding #1 and #2, with automatic web guide device, fast roller change.
(2) Double corona treatment to optimize web surface molecular structure according to demand for better adhesion.
(3) Equipped with static elimination device before the laminate, to avoid electrostatic causes of the bubble or uneven.
(4) Custom high-precision T-die, internal heating type, the minimum coating amount of 8 microns, the thickness of the error does not exceed 5%.
(5) Surface friction rewinding, adjustable pressure on both side, compact rewinding, neat edges.

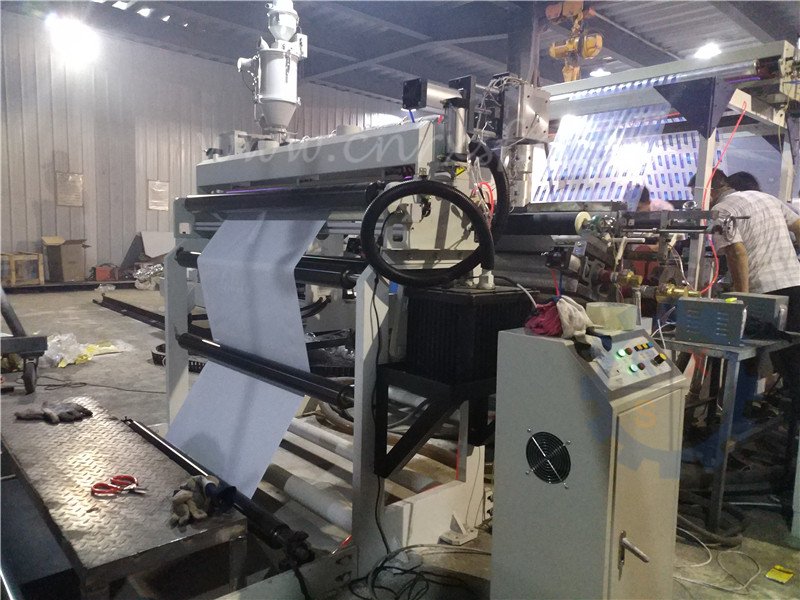

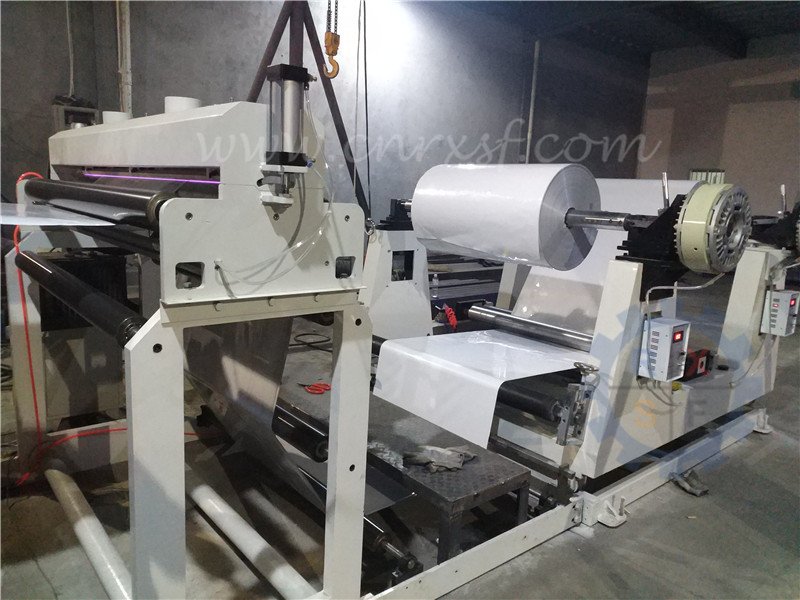

B. Double corona treatment to optimize web surface molecular structure according to demand for better adhesion:

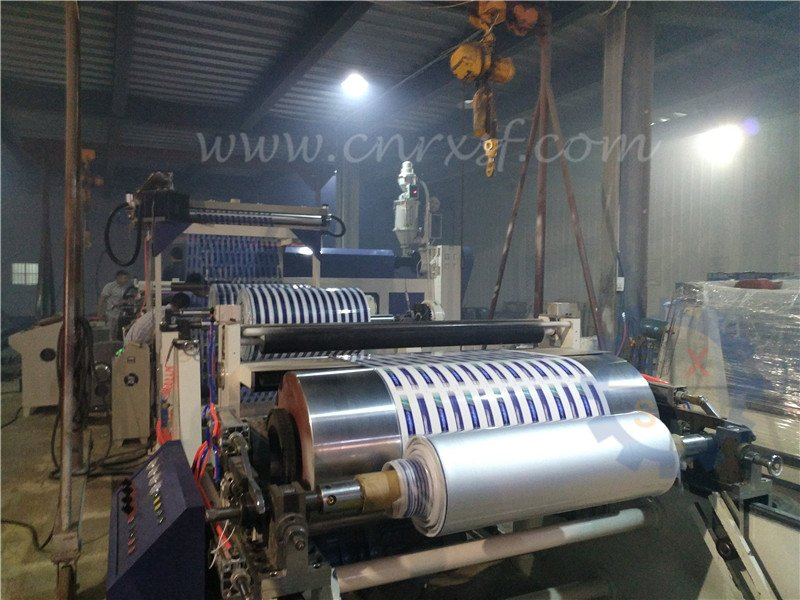

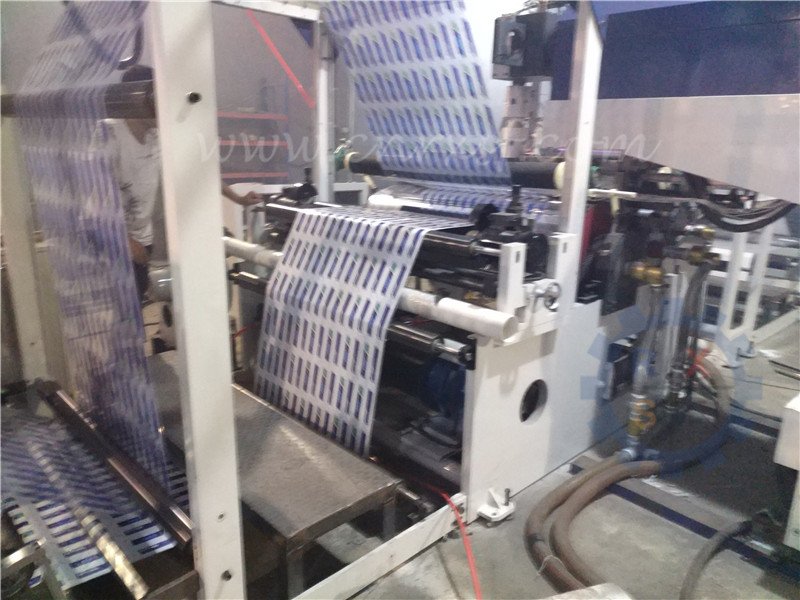

C. Equipped with static elimination device before the laminate, to avoid electrostatic causes of the bubble or uneven:

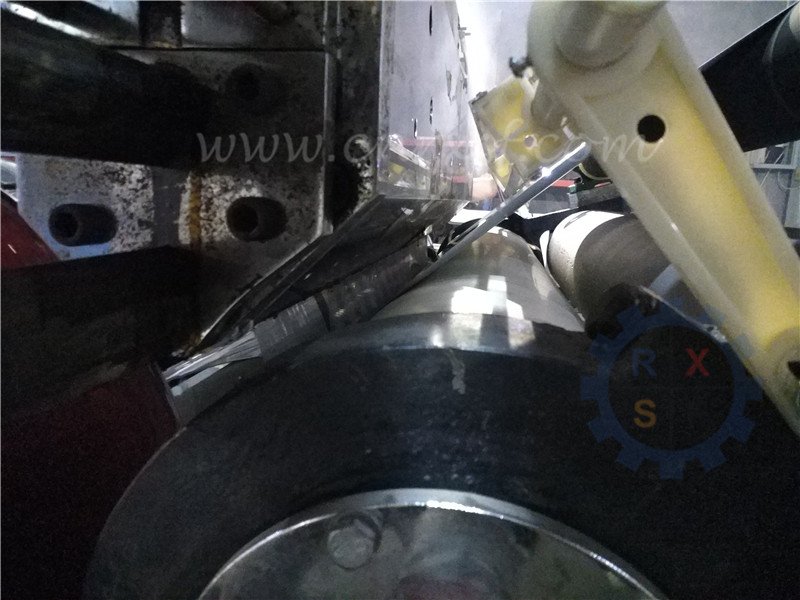

D. Custom high-precision T-die, internal heating type, the minimum coating amount of 8 microns, the thickness of the error does not exceed 5%:

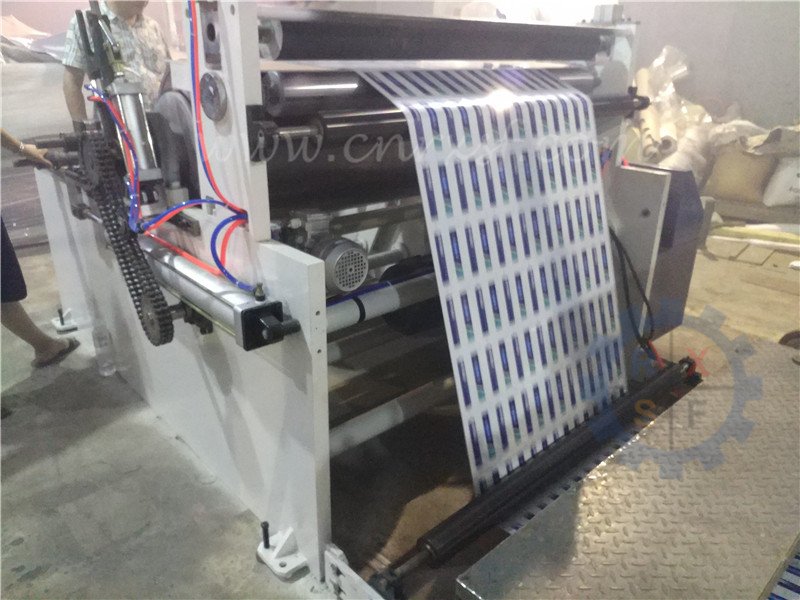

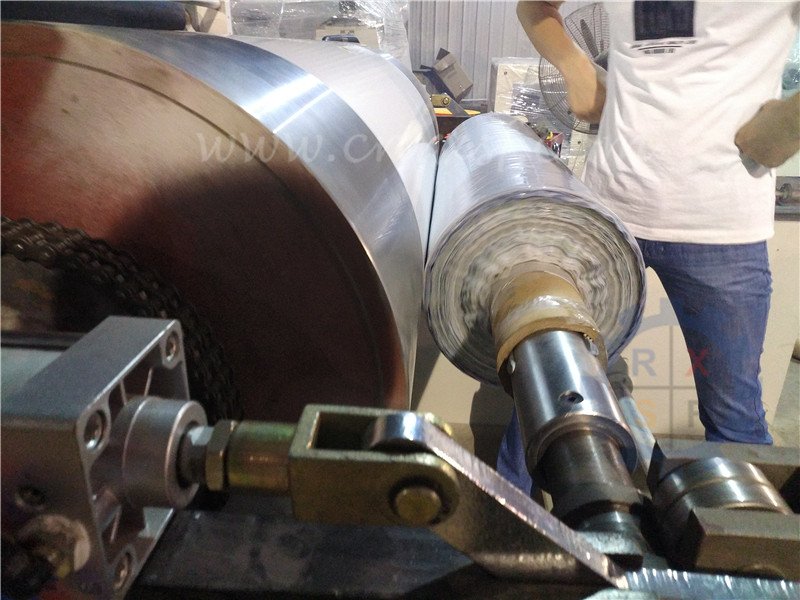

E. Surface friction rewinding, adjustable pressure on both side, compact rewinding, neat edges:

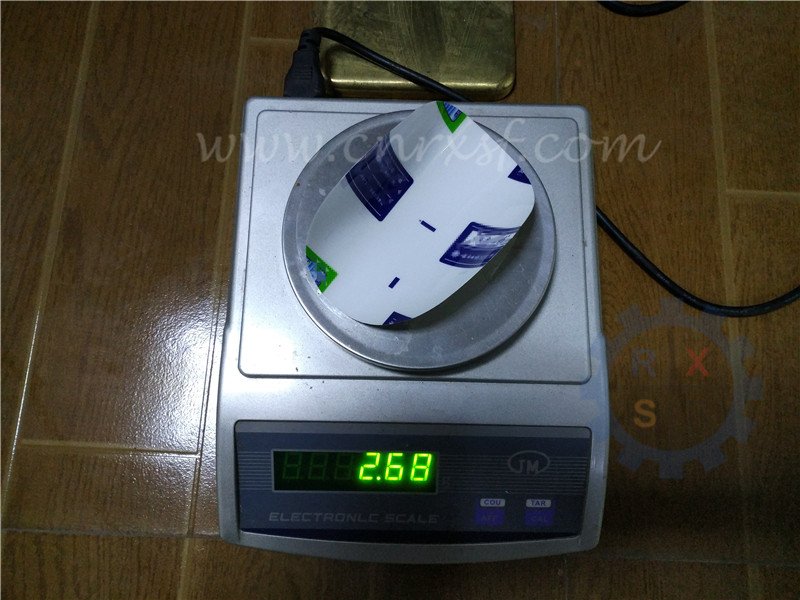

F. After several tests, the final product thickness and anti-peel degree is very good:

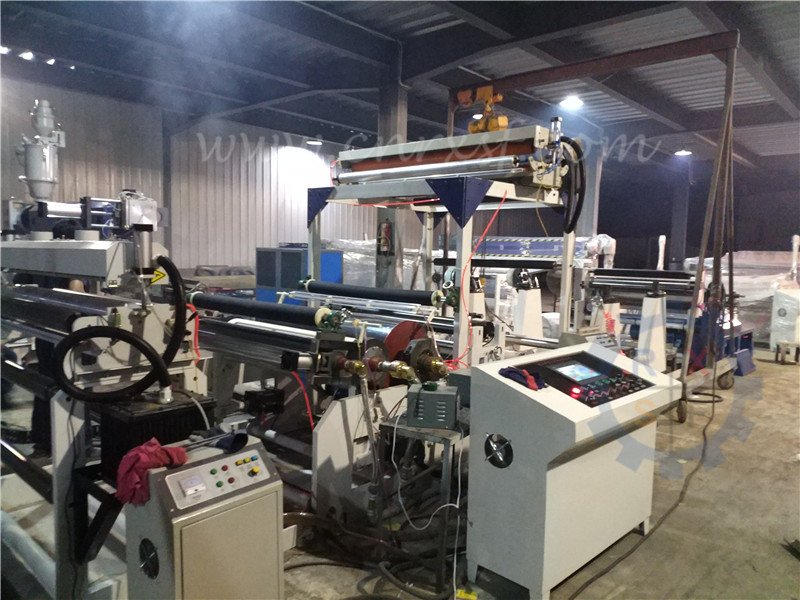

G. Integrated control, variable frequency speed adjustment, the operator can quickly grasp the basic operation:
Through this link to view the video: https://youtu.be/gWgBIDbfLA4
B. Double corona treatment to optimize web surface molecular structure according to demand for better adhesion:
C. Equipped with static elimination device before the laminate, to avoid electrostatic causes of the bubble or uneven:
D. Custom high-precision T-die, internal heating type, the minimum coating amount of 8 microns, the thickness of the error does not exceed 5%:
E. Surface friction rewinding, adjustable pressure on both side, compact rewinding, neat edges:
F. After several tests, the final product thickness and anti-peel degree is very good:
G. Integrated control, variable frequency speed adjustment, the operator can quickly grasp the basic operation:
Through this link to view the video: https://youtu.be/gWgBIDbfLA4
5. Packaging and shipping

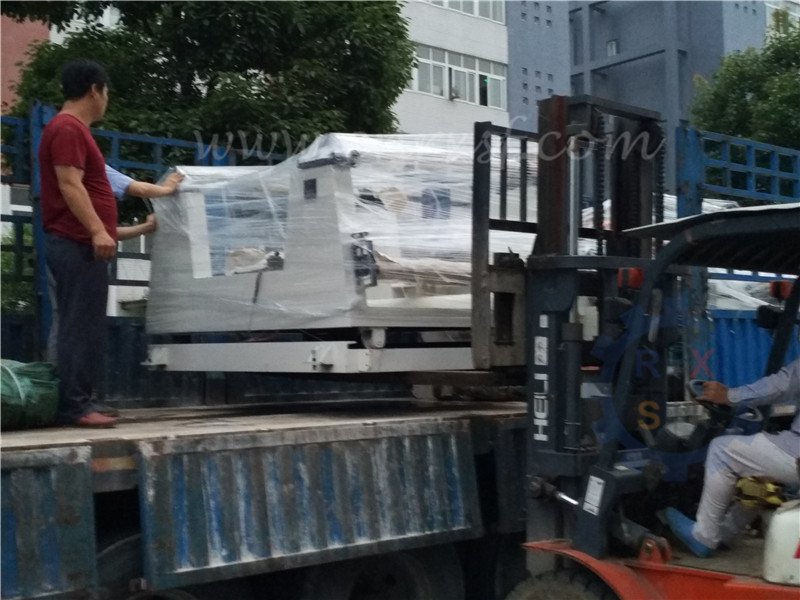

A. PE stretch film wrapping, steel wire fixed on truck:

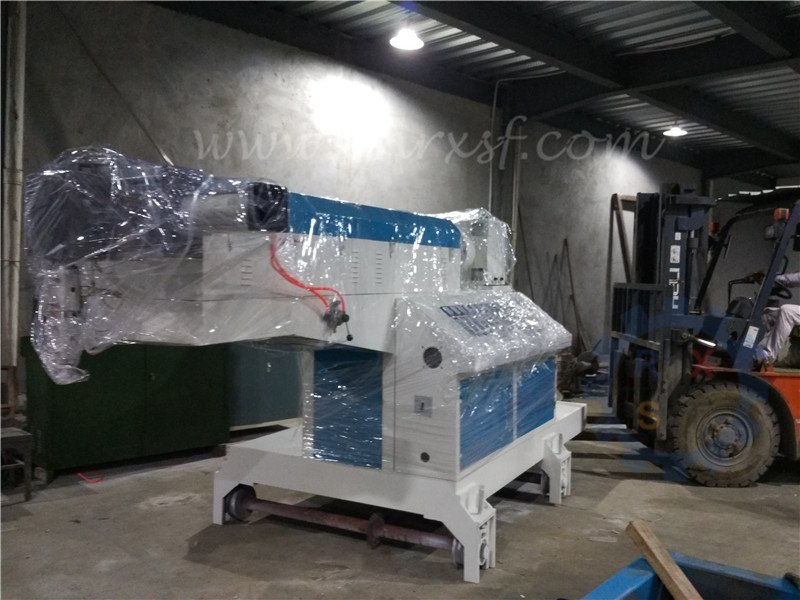

B. The extruder unit will remain intact (T-die is individually packaged with a wooden box):

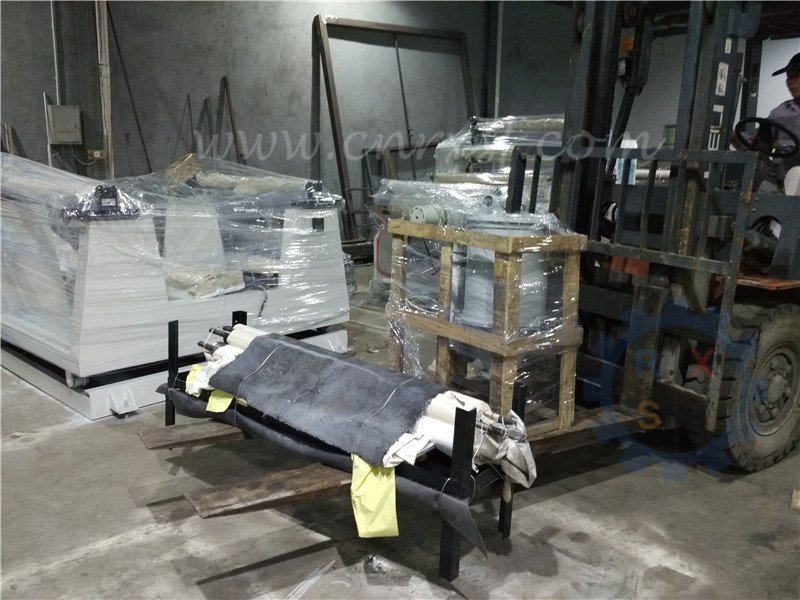

C. Others shafts and spare parts, using felt and wooden box:
6. Trading terms and after sales service
5. Packaging and shipping
A. PE stretch film wrapping, steel wire fixed on truck:
B. The extruder unit will remain intact (T-die is individually packaged with a wooden box):
C. Others shafts and spare parts, using felt and wooden box:
