1. Main Technical Parameters | A. Model | 600 | 700 |
| B. Max bag width (mm) | 500 | 600 |
| C. Max bag length (mm) | 1200 | 1200 |
| D. Thickness of film (mm) | 0.008-0.15 | 0.008-0.15 |
| E. Bag making speed (pic/min) | 30-120 | 30-120 |
| F. Total power (kw) | 3.0 | 3.8 |
| G. Total weight (kg) | 1000 | 1100 |
| H. Overall dimension (M) | 3.6*1.3*1.7 | 3.6*1.45*1.7 |

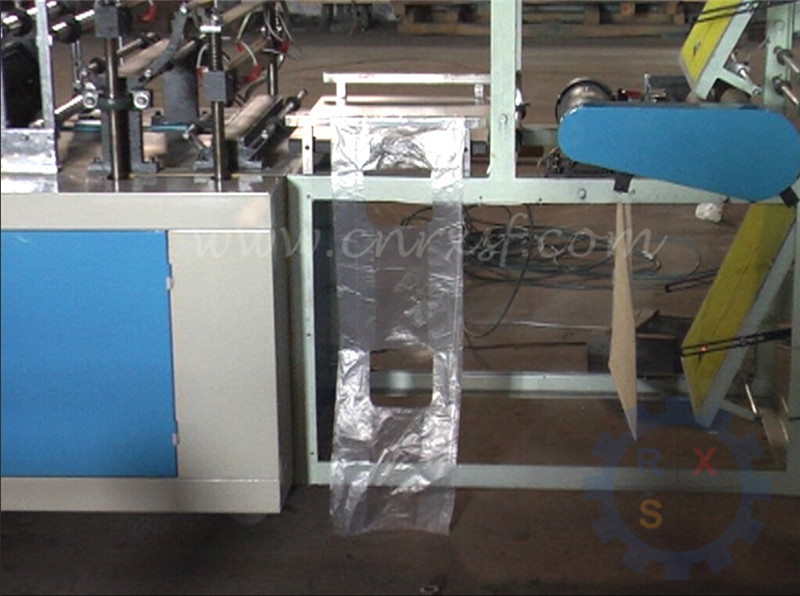

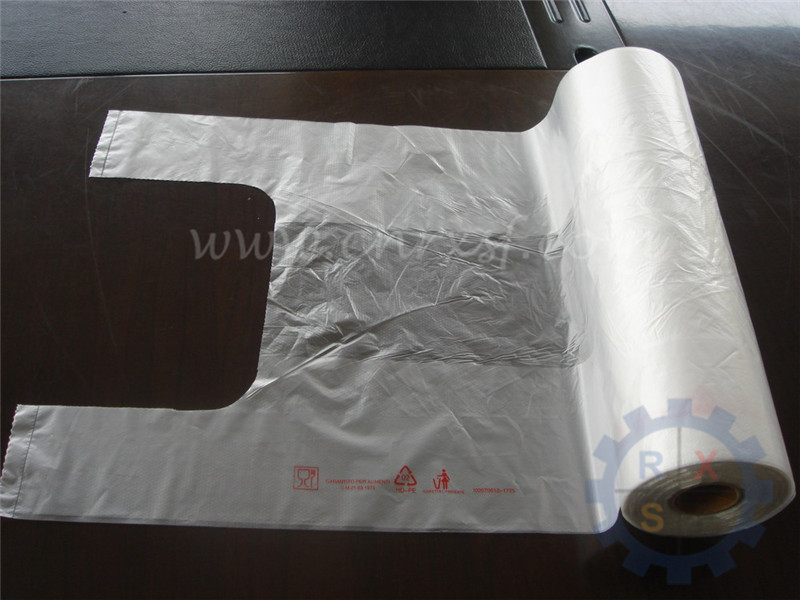

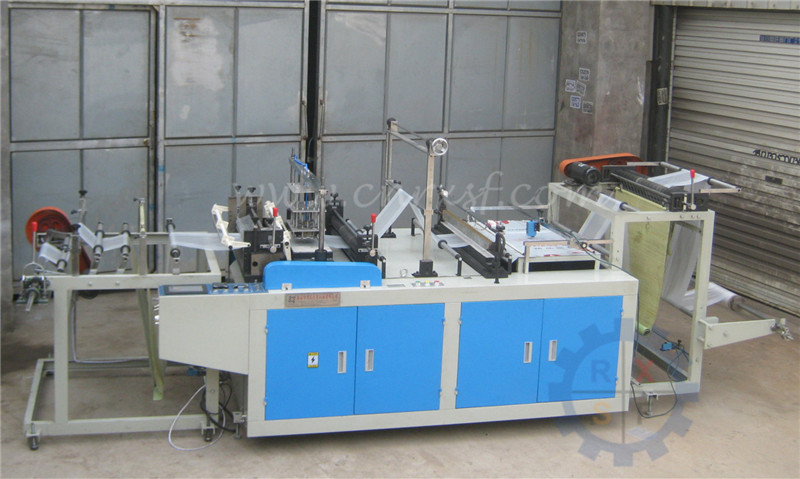

2. Comprehensive Description The machine is suitable for LDPE, HDPE and other plastic film, can produce transparent and printed supermarket shopping bags. The machine specially designed for vest point cutting and common points cutting bags.
3. Product Features (1) Microcomputer control, step (servo) setting length system, high speed bag making, accurate sealing and cutting
(2) Inverter speed control, smooth operation, low noise and saving power
(3) Intelligent temperature controller, thermostat-controlled to ensure sealing firm, smooth and beautiful

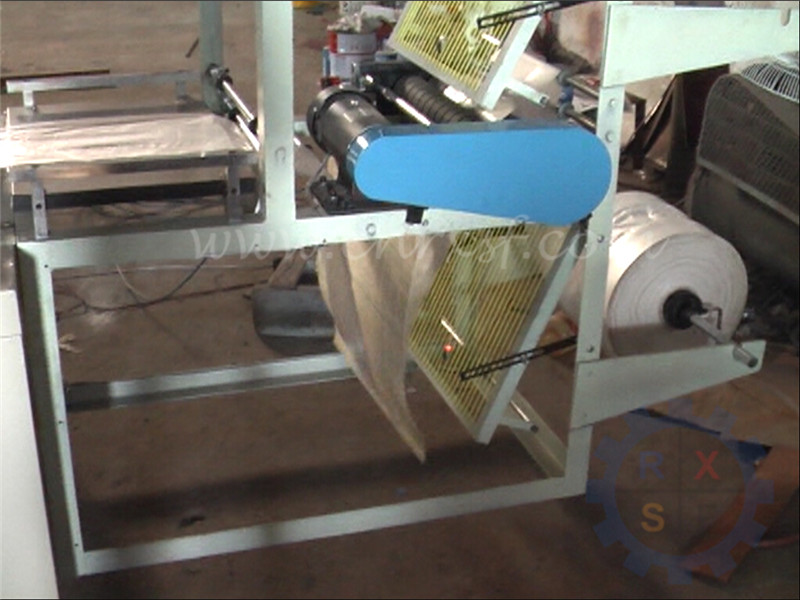

(4) The unwinding and rewinding parts adopted photoelectric , stepless speed control and easy to operate

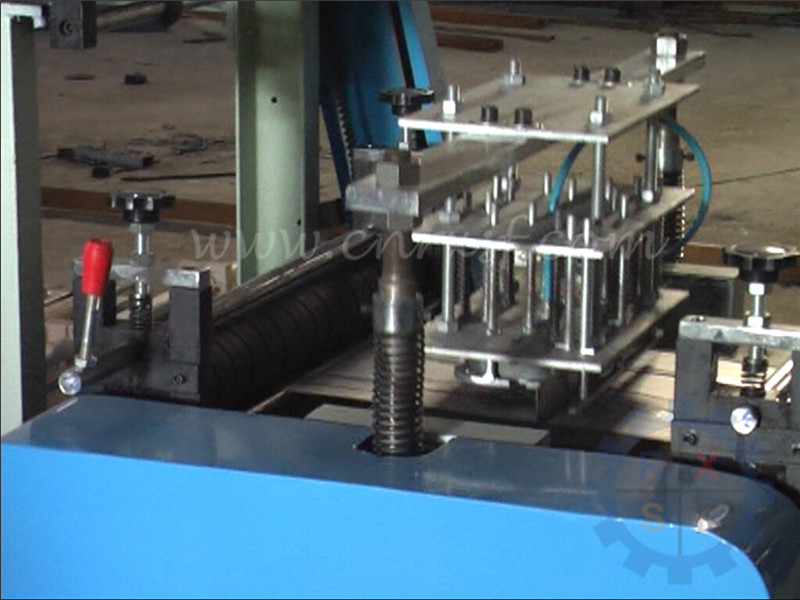

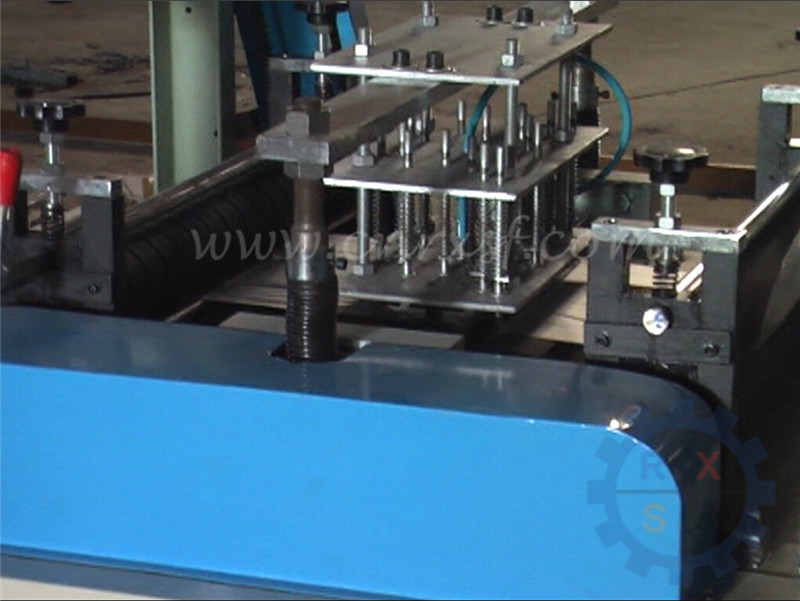

(5) Feeding → bottom sealing → point cutting → punching → rewinding completed in one process, with high degree of automation and good economic returns

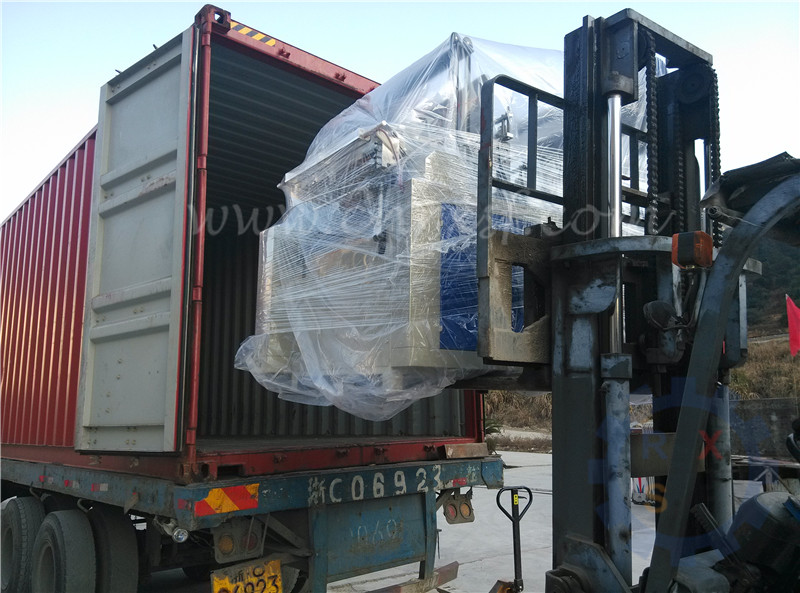

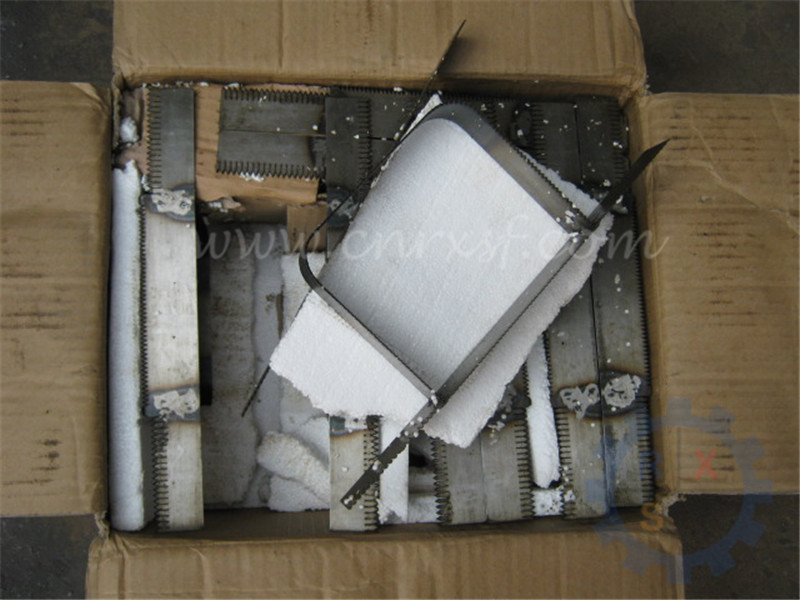

5. Packaging and shipping A. Plastic film wrapped, adhesive tape tied : B. Spare parts will be individually wrapped, secure fixed inside the container :
C. Electrical components and consumables will adopt the damage prevention packaging : 6. Trading terms and after sales service (1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.
(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.
(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.
(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.
(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.
(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.
(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.
(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention. 7. Documents A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;
B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
