1. Main Technical Parameters | A. Model | 1000 | 1200 | 1500 |
| B. Width of sealing & cutting (mm) | 980 | 1180 | 1480 |
| C. Length of sealing & cutting (mm) | 2000 | 2000 | 2000 |
| D. Speed of bag making (pc/min) | (40-100)*6 | (40-100)*6 | (40-100)*6 |
| E. Number of strip | 6 | 6 | 6 |
| F. Power of main motor (kw) | 2.2 | 3 | 4 |
| G. Total weight (kg) | 1300 | 1400 | 1600 |
| H. Overall dimension (M) | 4.8*2.2*1.8 | 4.8*2.2*2.0 | 4.8*2.2*2.6 |

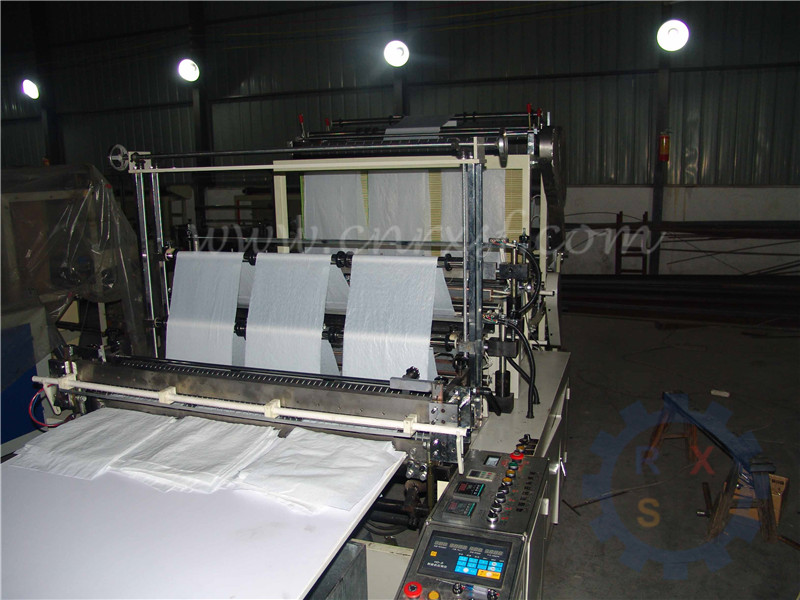

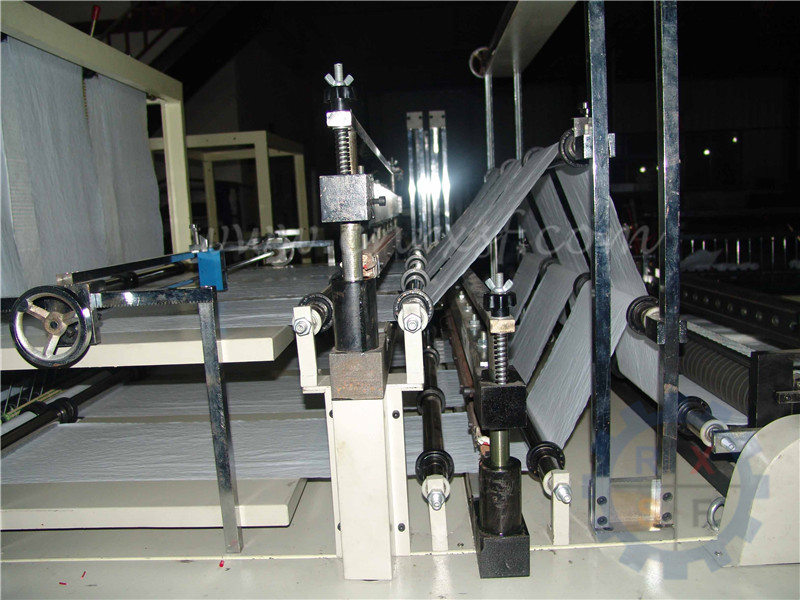

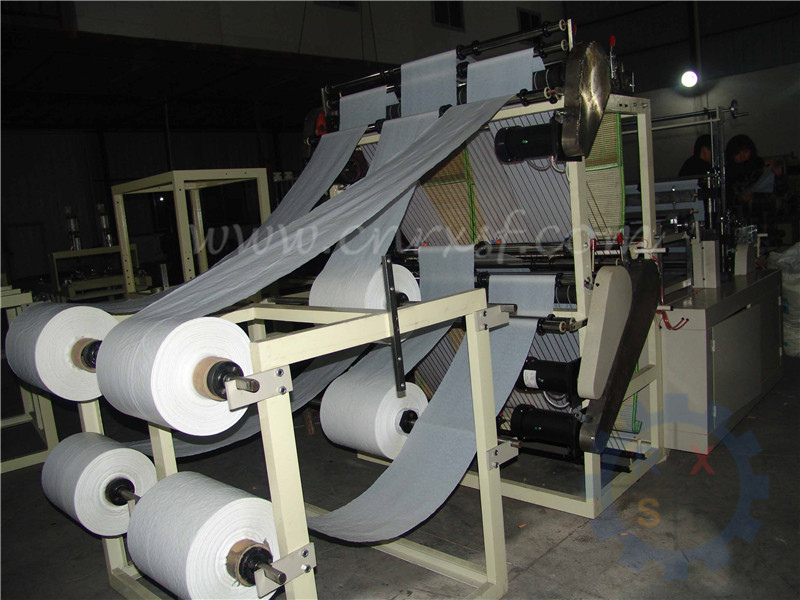

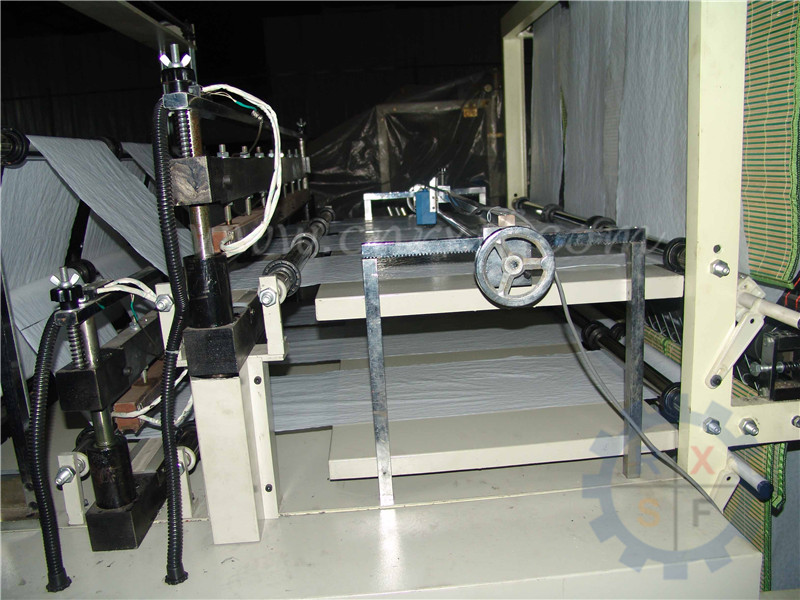

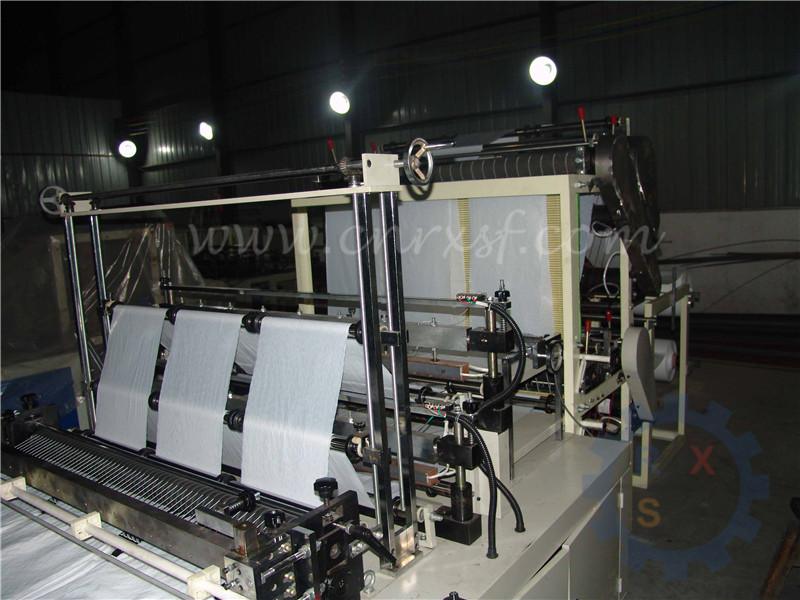

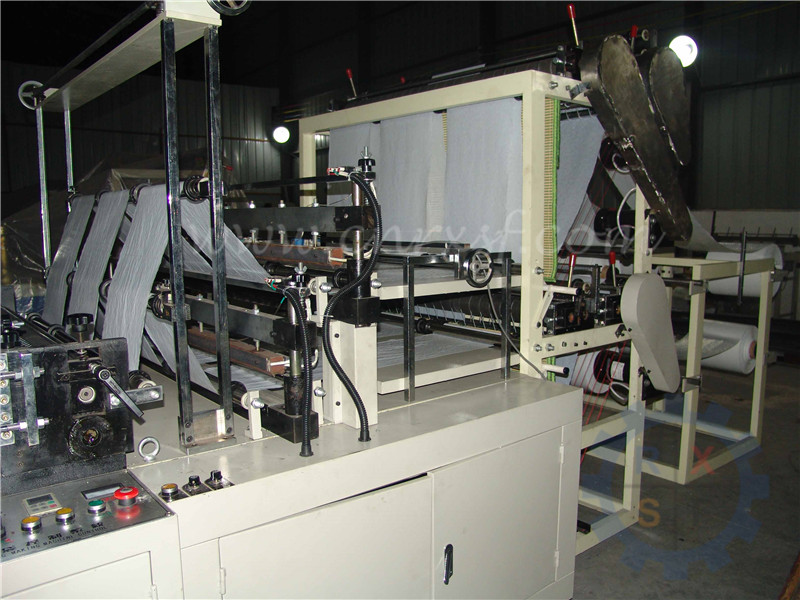

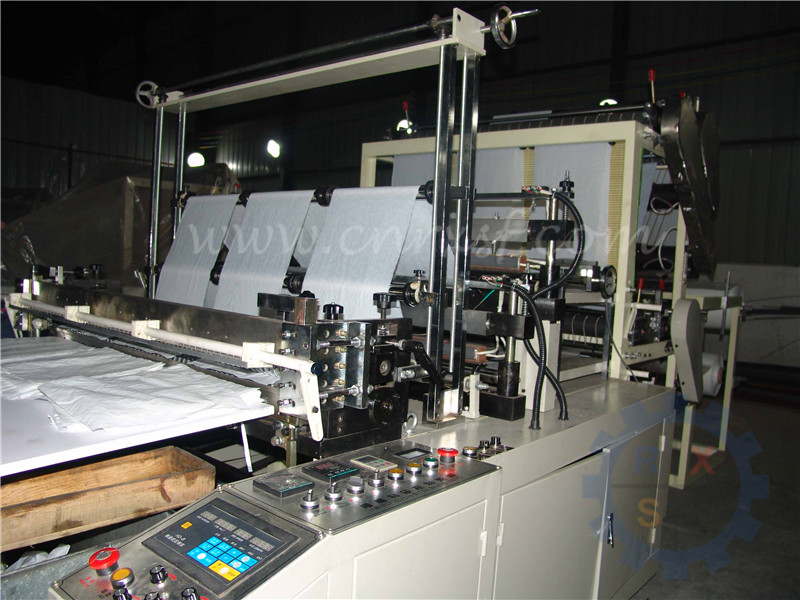

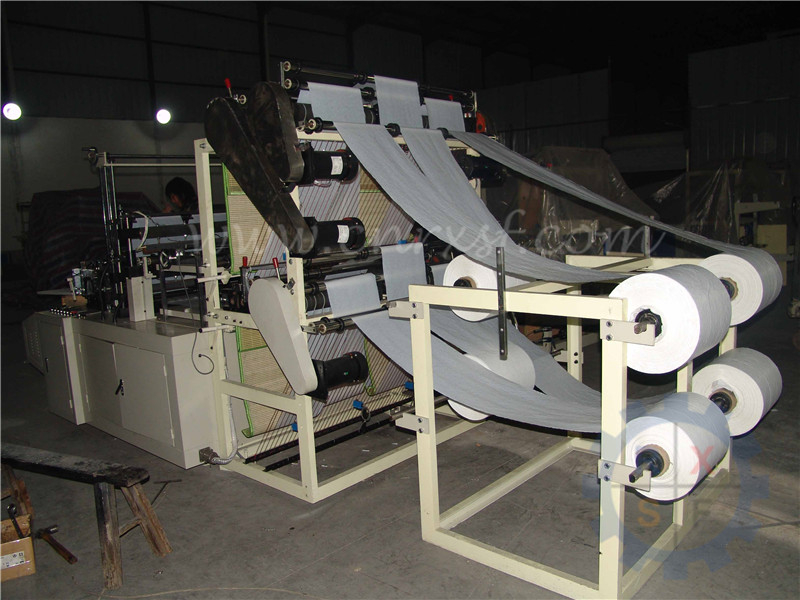

2. Comprehensive Description Fully automatic high-speed 6 lines bag making machine is a heavy duty machine. Plastic film loading on six unwinding shaft and feeding by torque motor . Bottom sealing by two sets of heat-sealing device(Dual-platform structure). Cold-cutting device can be equipped with automatic punching device in order to produced flat bags or vest bags.
Operation controlled by microcomputer, also can be optionally with PLC touch screen. The main traction can be optionally with stepper motor or servo motor.
3. Product Features (1) Fully automatic microcomputer control, from film to plastic bags in one process
(2) Auto feeding, auto-tension control by torque motor
(3) Length control by servo motor with high precision
(4) 6 lines high efficiency operation, save manpower and time

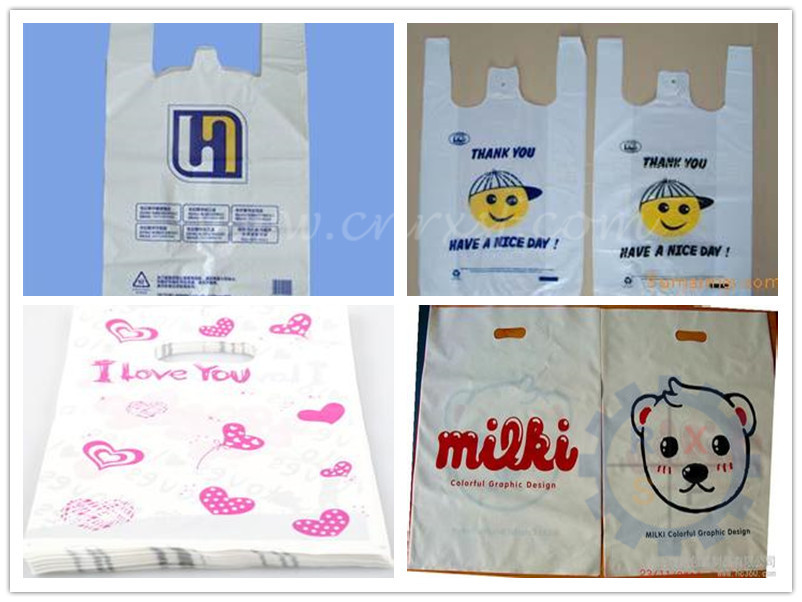

(5) Cold cutting / punching device, a variety of plastic bags to choose
1. Main Technical Parameters
| A. Model | 1000 | 1200 | 1500 |
| B. Width of sealing & cutting (mm) | 980 | 1180 | 1480 |
| C. Length of sealing & cutting (mm) | 2000 | 2000 | 2000 |
| D. Speed of bag making (pc/min) | (40-100)*6 | (40-100)*6 | (40-100)*6 |
| E. Number of strip | 6 | 6 | 6 |
| F. Power of main motor (kw) | 2.2 | 3 | 4 |
| G. Total weight (kg) | 1300 | 1400 | 1600 |
| H. Overall dimension (M) | 4.8*2.2*1.8 | 4.8*2.2*2.0 | 4.8*2.2*2.6 |
2. Comprehensive Description
Fully automatic high-speed 6 lines bag making machine is a heavy duty machine. Plastic film loading on six unwinding shaft and feeding by torque motor . Bottom sealing by two sets of heat-sealing device(Dual-platform structure). Cold-cutting device can be equipped with automatic punching device in order to produced flat bags or vest bags.
Operation controlled by microcomputer, also can be optionally with PLC touch screen. The main traction can be optionally with stepper motor or servo motor.
3. Product Features
(1) Fully automatic microcomputer control, from film to plastic bags in one process
(2) Auto feeding, auto-tension control by torque motor
(3) Length control by servo motor with high precision
(4) 6 lines high efficiency operation, save manpower and time
(5) Cold cutting / punching device, a variety of plastic bags to choose

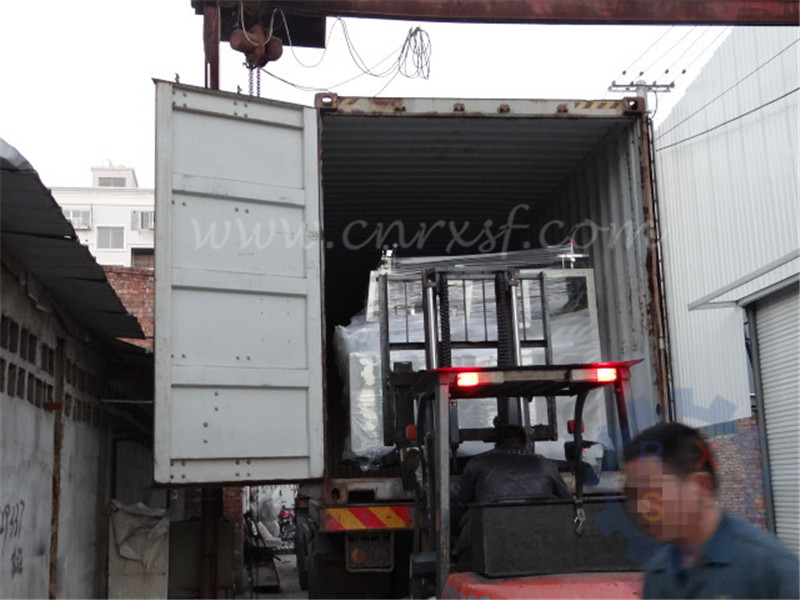

5. Packaging and shipping A. PE stretch film wrapping, corrugated cardboard protection, steel wire fixed : B. Wearing parts will use damping package :

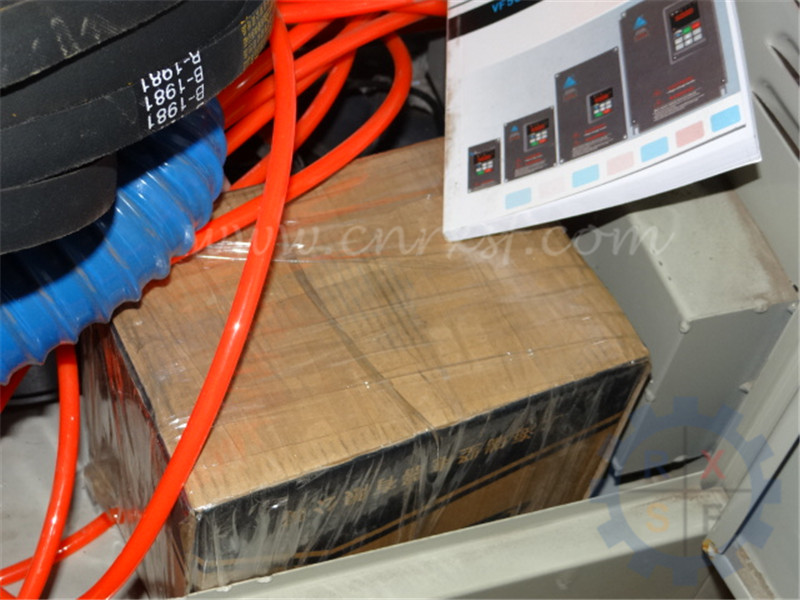

C. Spare parts and electrical components will be individually packaged, and with manual : 6. Trading terms and after sales service (1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.
(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.
(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.
(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.
(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.
(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.
(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.
(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention. 7. Documents A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;
B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
