1.Main Technical Parameters
A. Model | 1200 | Remarks |
B. Web width (mm) | 1230 | The width of the finished product is 1200mm |
C. Diameter of unwinding (mm) | 800 | |
D. Unwinding loading | Automatic lift | Pneumatic cylinder lift |
E. Printing speed (m/min) | 30-60 | |
F. Cross-cutting speed (times/min) | 40-80 | Depending on the length of the crosscut |
G. Speed coordination | Dancing heavy rollers | |
H. Position control | Photoelectric induction | |
I. Stage control | Inverter(s) | |
J. Overall control | PLC | Touch screen operation |
K. Total power (kw) | 12 | |
L. Total weight (kg) | 3500 | |
M. Overall dimension (M) | 4.5*1.9*2.1 | |
N. Optional | Number of printing | 1-4 colors support |
2.Comprehensive Description

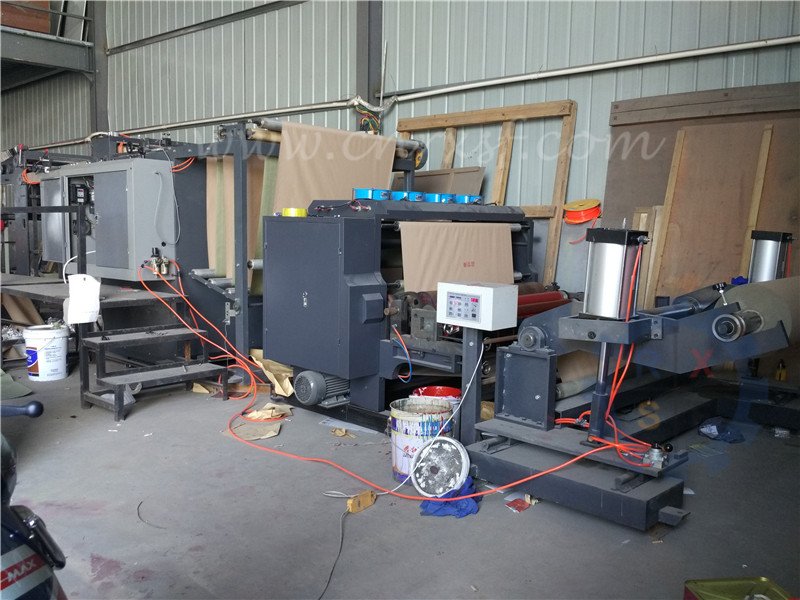

Multifunctional flexo printing - cross cutting machine with automatic stacking, is a customize multifunctional machine. Based on the process of minimizing the process and saving labor, it achieves one step from the roll paper to the printed sheet. If the printing requirements are not very high (1-2 colors printing, pattern design is not complicated), this machine will be the best choice. It only needs 1-2 workers to operate (two such machines, three workers is enough), the equivalent of 80% of the production capacity of "one flexographic printing press + one crosscutting machine", and almost no waste.
3. Product Features

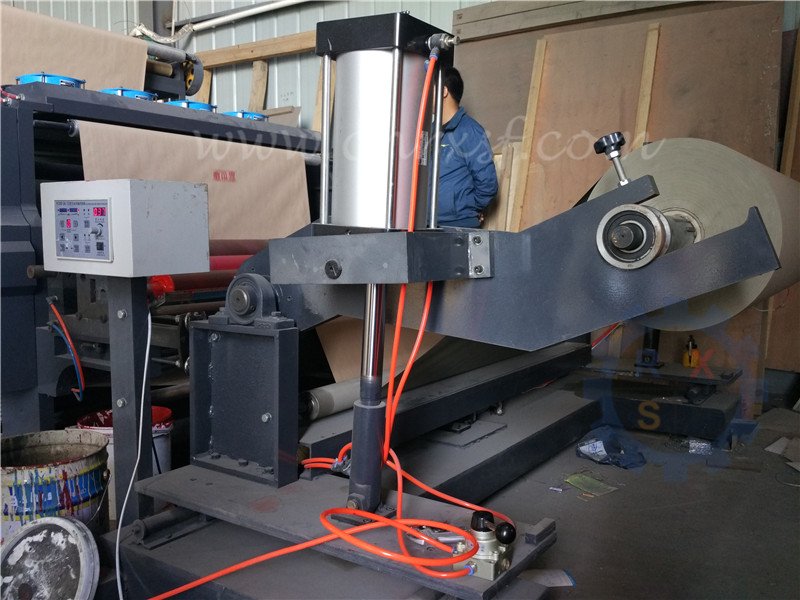

(1) Automatic pneumatic cylinder unwinding load, magnetic powder tension control, saving manpower, precise control of tension
(2) Open flexographic printing unit with photoelectric tracking to ensure crosscutting matching printing
(3) Dancing heavy rollers to coordinate the line speed to ensure that the intermittent drive matches the continuous drive
(4) Automatic stacking unit with automatic edge finishing device and infrared height sensing device, with a high degree of automation
(5) Stage inverter control combined with the overall PLC touch screen control, easy to operate, save manpower
1.Main Technical Parameters
A. Model | 1200 | Remarks |
B. Web width (mm) | 1230 | The width of the finished product is 1200mm |
C. Diameter of unwinding (mm) | 800 | |
D. Unwinding loading | Automatic lift | Pneumatic cylinder lift |
E. Printing speed (m/min) | 30-60 | |
F. Cross-cutting speed (times/min) | 40-80 | Depending on the length of the crosscut |
G. Speed coordination | Dancing heavy rollers | |
H. Position control | Photoelectric induction | |
I. Stage control | Inverter(s) | |
J. Overall control | PLC | Touch screen operation |
K. Total power (kw) | 12 | |
L. Total weight (kg) | 3500 | |
M. Overall dimension (M) | 4.5*1.9*2.1 | |
N. Optional | Number of printing | 1-4 colors support |
2.Comprehensive Description
Multifunctional flexo printing - cross cutting machine with automatic stacking, is a customize multifunctional machine. Based on the process of minimizing the process and saving labor, it achieves one step from the roll paper to the printed sheet. If the printing requirements are not very high (1-2 colors printing, pattern design is not complicated), this machine will be the best choice. It only needs 1-2 workers to operate (two such machines, three workers is enough), the equivalent of 80% of the production capacity of "one flexographic printing press + one crosscutting machine", and almost no waste.
3. Product Features
(1) Automatic pneumatic cylinder unwinding load, magnetic powder tension control, saving manpower, precise control of tension
(2) Open flexographic printing unit with photoelectric tracking to ensure crosscutting matching printing
(3) Dancing heavy rollers to coordinate the line speed to ensure that the intermittent drive matches the continuous drive
(4) Automatic stacking unit with automatic edge finishing device and infrared height sensing device, with a high degree of automation
(5) Stage inverter control combined with the overall PLC touch screen control, easy to operate, save manpower

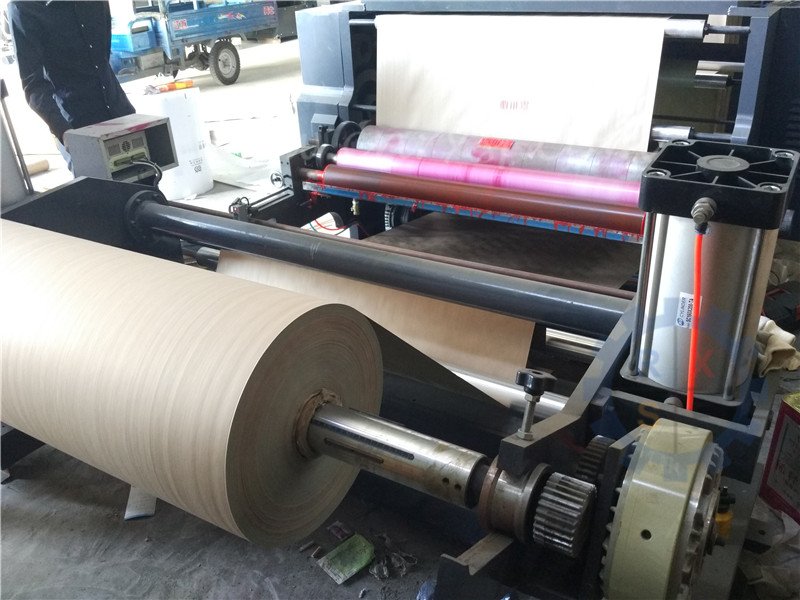

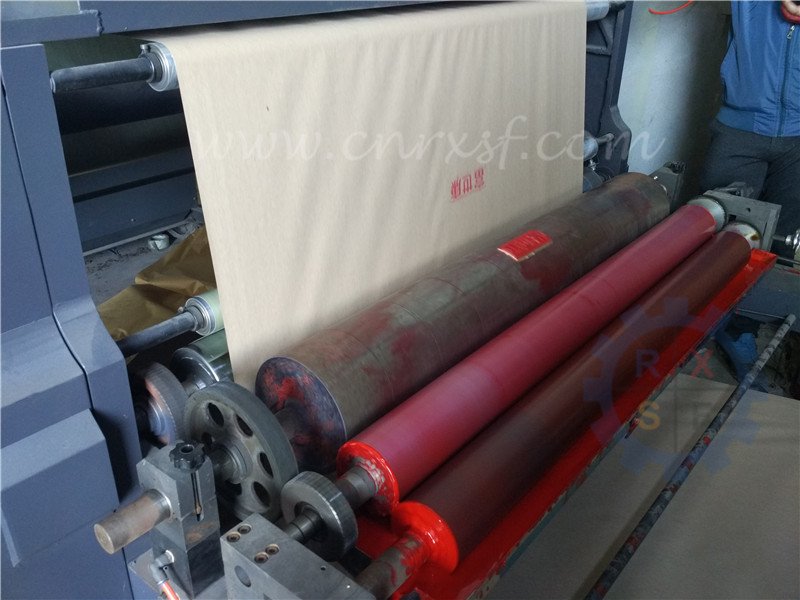

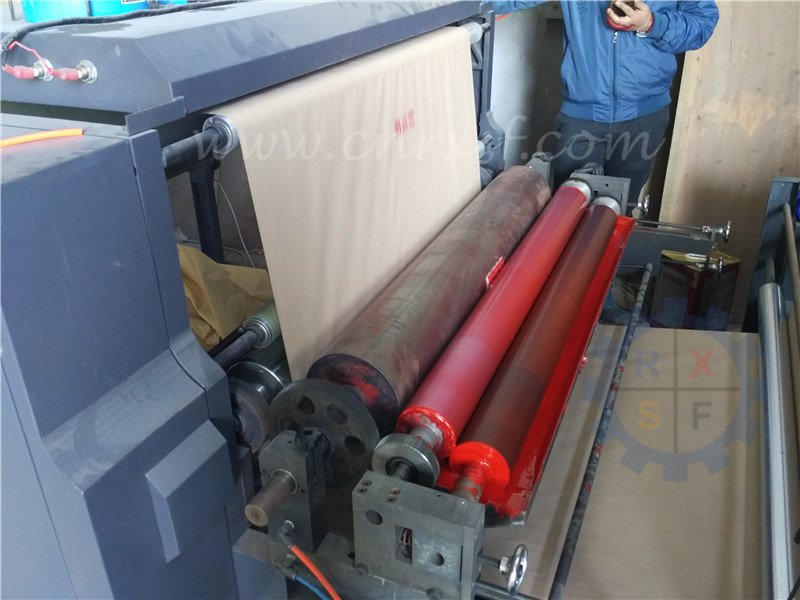

B. Open flexographic printing unit with photoelectric tracking to ensure crosscutting matching printing:

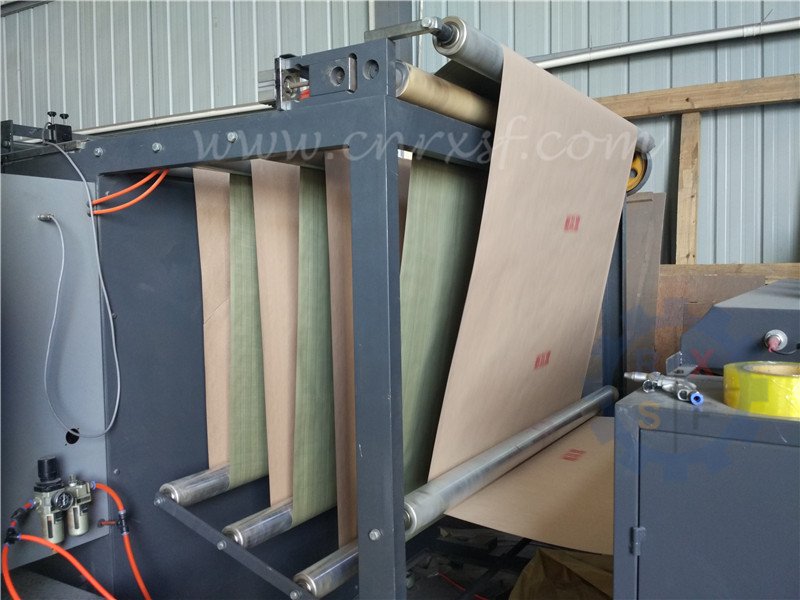

C. Dancing heavy rollers to coordinate the line speed to ensure that the intermittent drive matches the continuous drive:

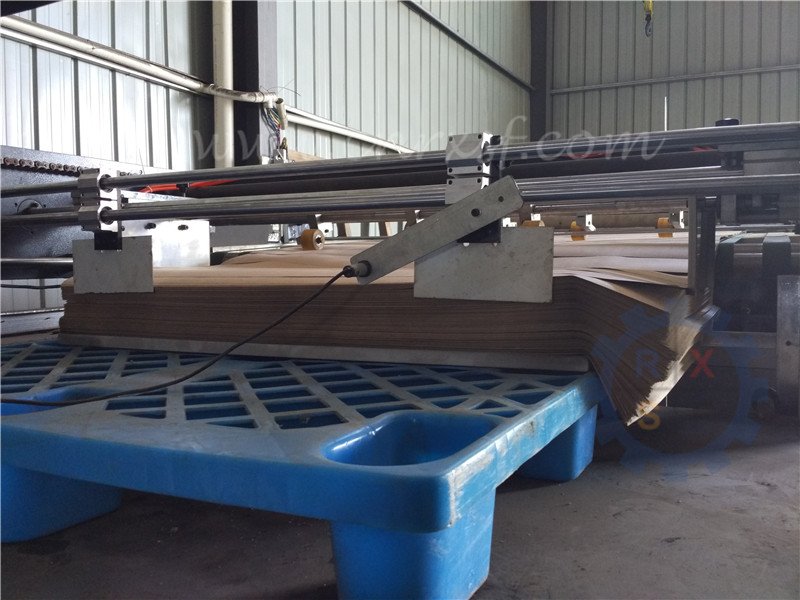

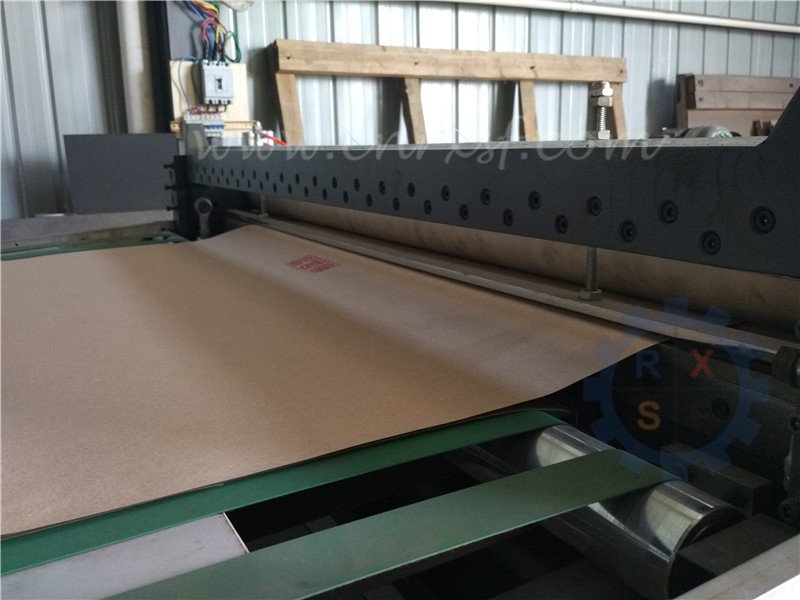

D. Automatic stacking unit with automatic edge finishing device and infrared height sensing device, with a high degree of automation:

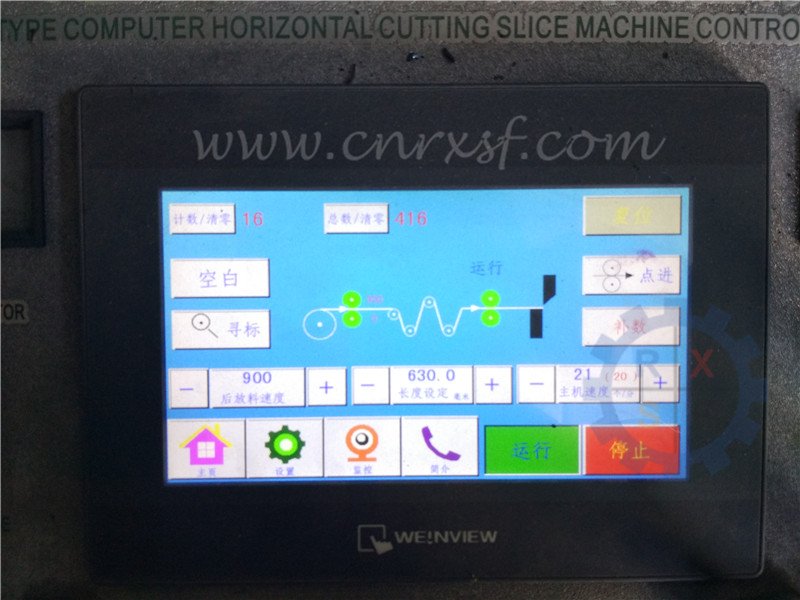

E. Stage inverter control combined with the overall PLC touch screen control, easy to operate, save manpower:

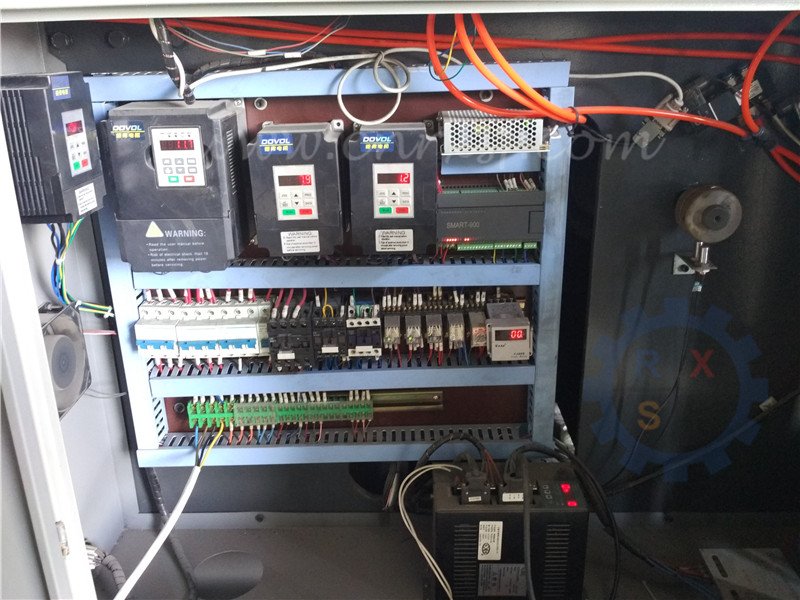

F. Inverter stage control, co - ordination:

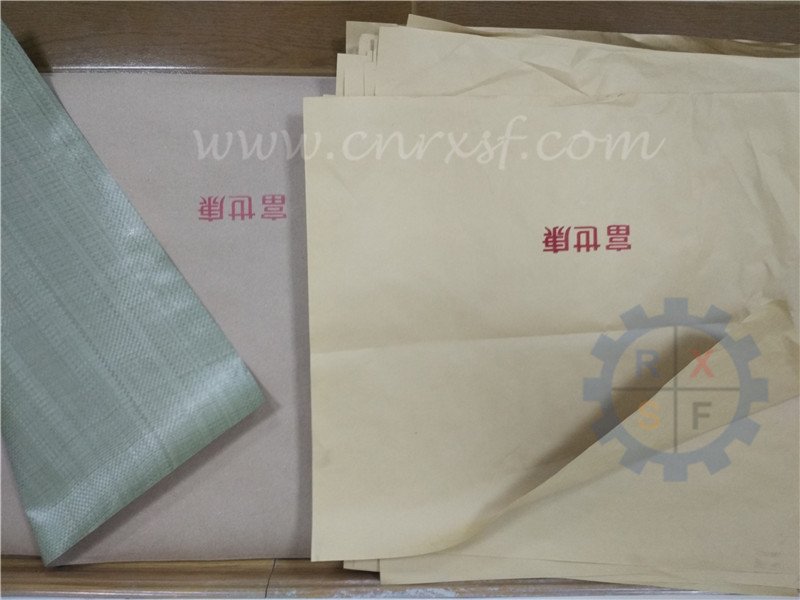

G. The final product, printed sheet paper / paper and PP woven fabric laminat:
Click this link to see the running video: https://youtu.be/TPFutuUSDMA
B. Open flexographic printing unit with photoelectric tracking to ensure crosscutting matching printing:
C. Dancing heavy rollers to coordinate the line speed to ensure that the intermittent drive matches the continuous drive:
D. Automatic stacking unit with automatic edge finishing device and infrared height sensing device, with a high degree of automation:
E. Stage inverter control combined with the overall PLC touch screen control, easy to operate, save manpower:
F. Inverter stage control, co - ordination:
G. The final product, printed sheet paper / paper and PP woven fabric laminat:
Click this link to see the running video: https://youtu.be/TPFutuUSDMA
5. Packaging and shipping

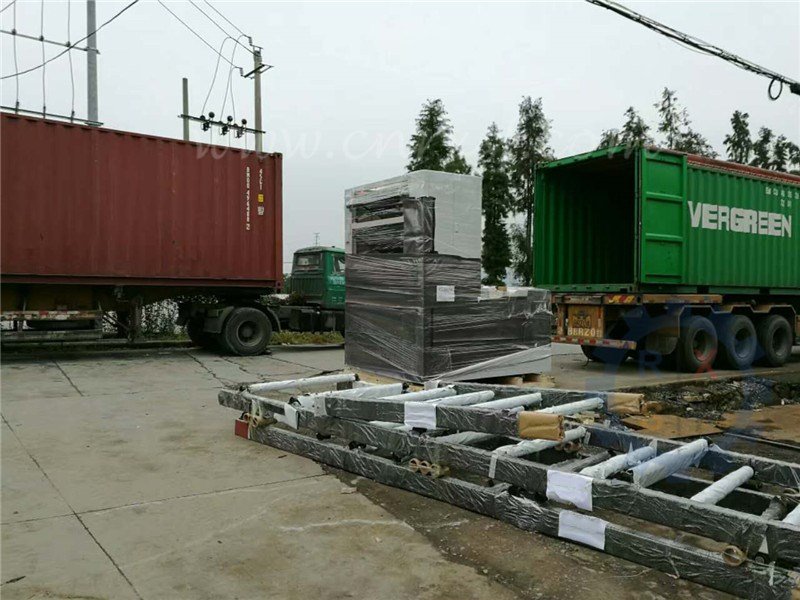

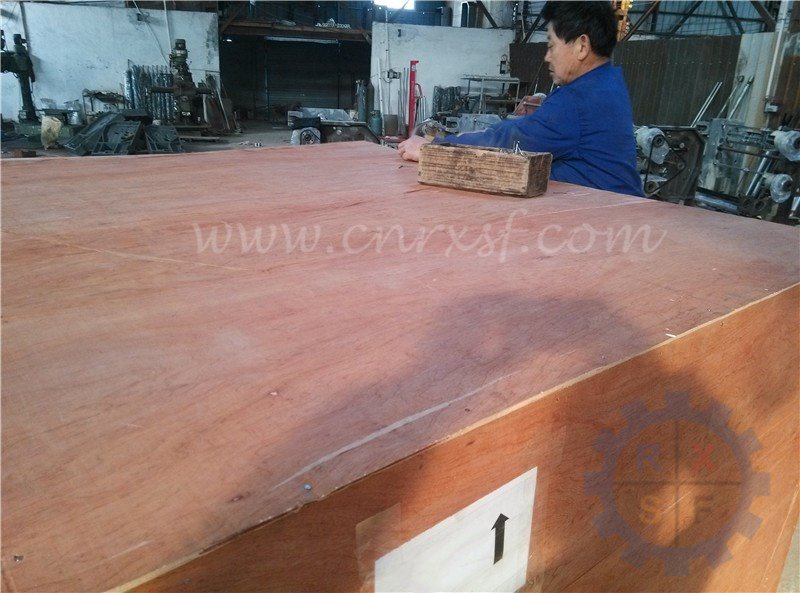

A. The main part, brushing anti-rust oil, winding the film and then into the container:
B. The spare parts use wooden cases:

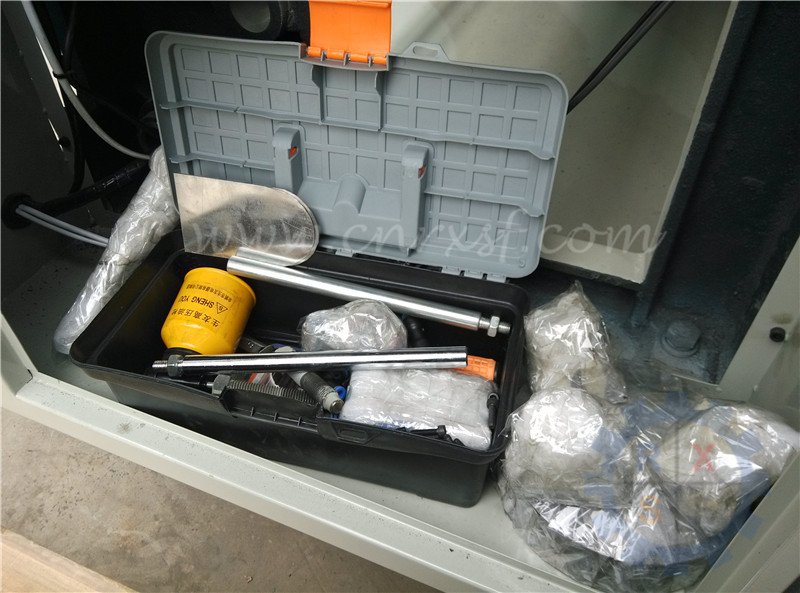

C. Tool box and fragile spare parts, send along with the machine, prepare customers after-sales service:
6. Trading terms and after sales service
5. Packaging and shipping
A. The main part, brushing anti-rust oil, winding the film and then into the container:
B. The spare parts use wooden cases:
C. Tool box and fragile spare parts, send along with the machine, prepare customers after-sales service:
6. Trading terms and after sales service
