1.Main Technical Parameters
Model | Customize 1400 | ||
Running line speed | Machinery | 150m/min | |
PE/PP coating | 60-120m/min | ||
Poker laminating | 50-100m/min | ||
Suitable type of base material | Paper/synthetic paper (main) √ | ||
Non-woven, composite plastic √ | |||
Foil,textile fabrics □ | |||
Suitable type of extruding resin | LDPE/LLDPE √ | ||
PP, EVA √ | |||
TPU, PVC □ | |||
Line process | Unwinding | Max diameter | Ø1200mm |
Structure | Horizontal duplex | ||
Rewinding | Motor/control | 11kw/ Inverter | |
Max diameter | Ø1200mm | ||
Web guide precision | ±0.5mm | ||
Tension range | 0-200N | ||
Web cutting & slitting & stitching | Unwinding | Semi-automatic splicing | |
Coating unit | Waste edge slitting & blowing device | ||
Rewinding | Rodless cylinder cutter | ||
Operational automation degree | Main control cabinet | Master Control Web transmission & extrusion PLC *for options | |
Coating unit | Temperature monitoring & control | ||
Unwinding unit #1 | Web semi-automatic splicing | ||
Unwinding unit #2 | Web semi-automatic splicing | ||
Rewinding unit | Cutting device Semi-automatic roll change | ||
Total power | Theoretical maximum | 120kw | |
Stable running | ≈65kw | ||
Total weight | 14500kg (±5%) | ||
Overall size (Without extruder) | 12.5M(L) * 2.8M(W) * 2.8M(H) | ||
Overall size (With extruder ) | 12.5M(L) * 8.5M(W) * 3.2M(H) |
2.Comprehensive Description
Multilayer paper extrusion laminating is a work with a technical content. For 80-100 gsm of paper, tension control, surface corona treatment and extrusion control, will affect the quality of the final product. After several tests and adjustments, our machines are able to meet all the requirements of the customer, creating poker paper with good (uniformity, toughness and weight).

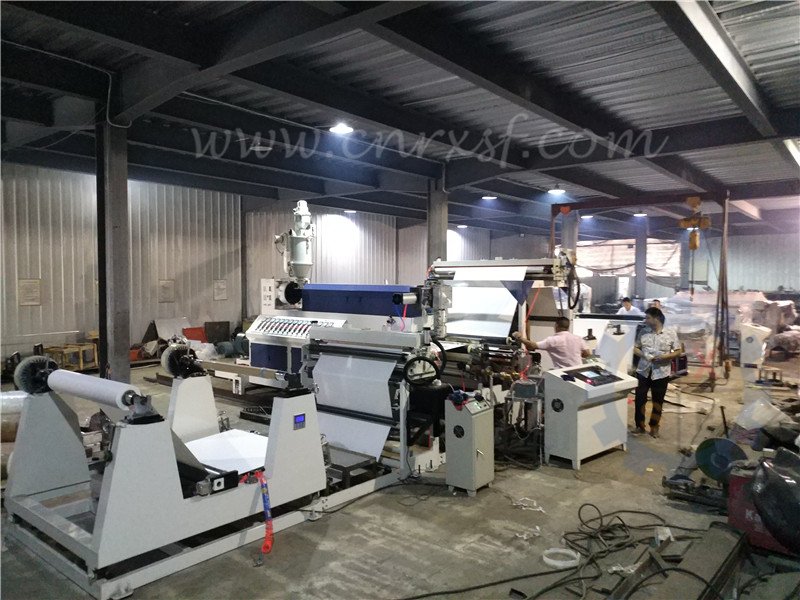

3. Product Features

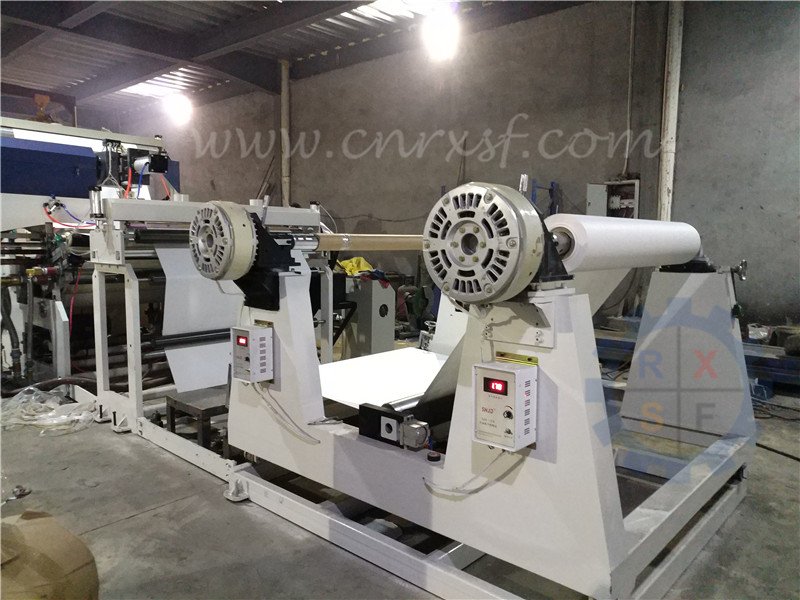

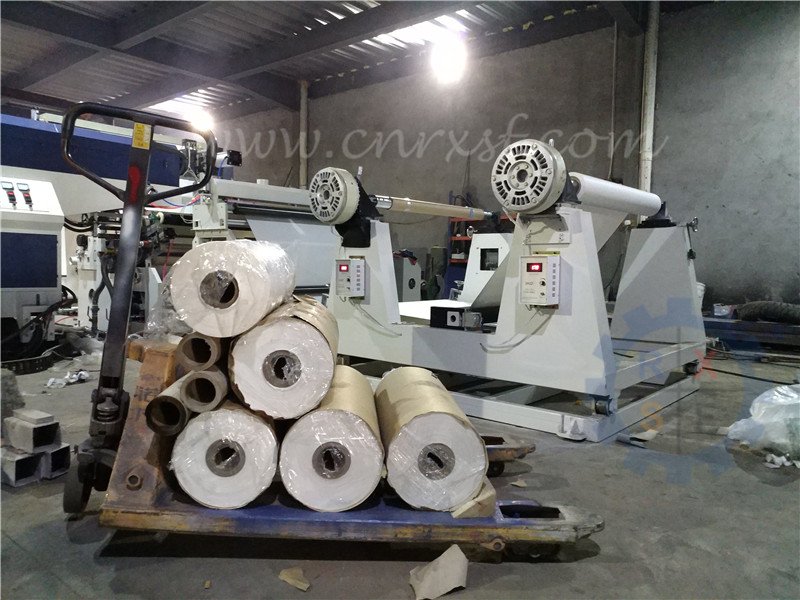

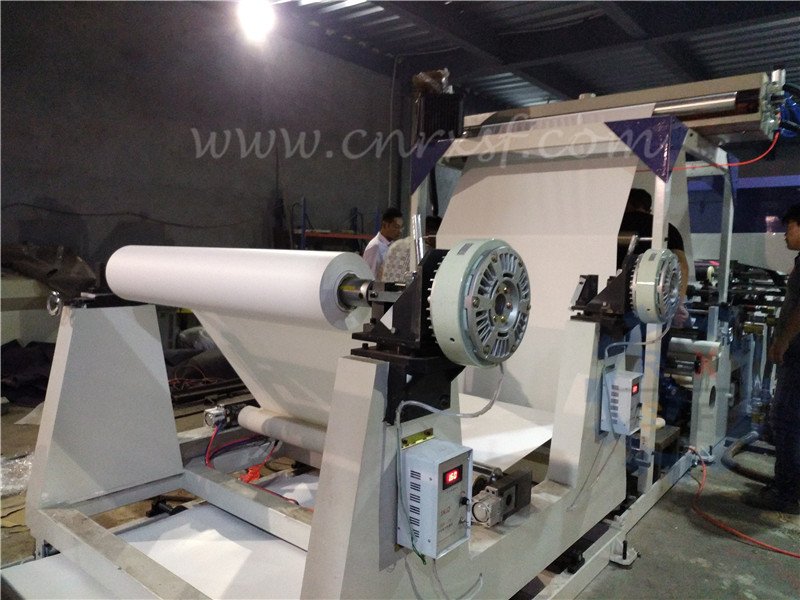

(1) Magnetic powder - pneumatic shaft unwinding structure, semi-automatic tension setting & control, make that paper smooth and balanced transmission.
(2) Double corona treatment to optimize web surface molecular structure according to demand for better adhesion.
(3) Custom high-precision T-die, internal heating type, the minimum coating amount of 8 microns, the thickness of the error does not exceed 5%.

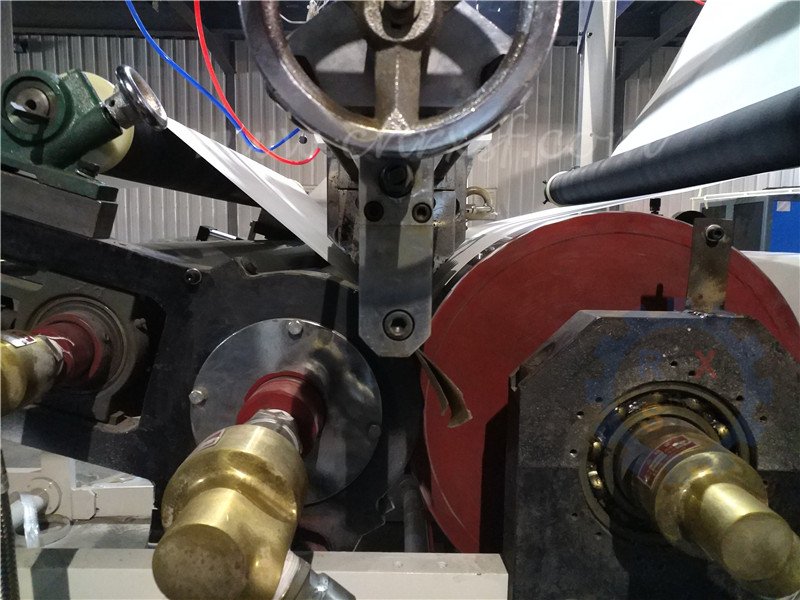

(4) The multiple use of the curved flattening roller allows the paper to always maintain a smooth surface and moderate tension to enhance the quality of the product.

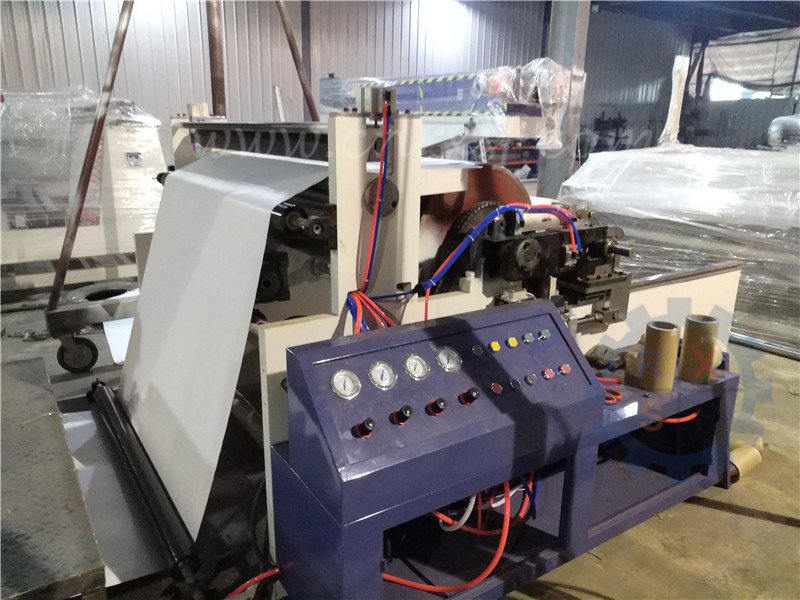

(5) Surface friction rewinding, adjustable pressure on both side, compact rewinding with neat edges.
1.Main Technical Parameters
Model | Customize 1400 | ||
Running line speed | Machinery | 150m/min | |
PE/PP coating | 60-120m/min | ||
Poker laminating | 50-100m/min | ||
Suitable type of base material | Paper/synthetic paper (main) √ | ||
Non-woven, composite plastic √ | |||
Foil,textile fabrics □ | |||
Suitable type of extruding resin | LDPE/LLDPE √ | ||
PP, EVA √ | |||
TPU, PVC □ | |||
Line process | Unwinding | Max diameter | Ø1200mm |
Structure | Horizontal duplex | ||
Rewinding | Motor/control | 11kw/ Inverter | |
Max diameter | Ø1200mm | ||
Web guide precision | ±0.5mm | ||
Tension range | 0-200N | ||
Web cutting & slitting & stitching | Unwinding | Semi-automatic splicing | |
Coating unit | Waste edge slitting & blowing device | ||
Rewinding | Rodless cylinder cutter | ||
Operational automation degree | Main control cabinet | Master Control Web transmission & extrusion PLC *for options | |
Coating unit | Temperature monitoring & control | ||
Unwinding unit #1 | Web semi-automatic splicing | ||
Unwinding unit #2 | Web semi-automatic splicing | ||
Rewinding unit | Cutting device Semi-automatic roll change | ||
Total power | Theoretical maximum | 120kw | |
Stable running | ≈65kw | ||
Total weight | 14500kg (±5%) | ||
Overall size (Without extruder) | 12.5M(L) * 2.8M(W) * 2.8M(H) | ||
Overall size (With extruder ) | 12.5M(L) * 8.5M(W) * 3.2M(H) |
2.Comprehensive Description
Multilayer paper extrusion laminating is a work with a technical content. For 80-100 gsm of paper, tension control, surface corona treatment and extrusion control, will affect the quality of the final product. After several tests and adjustments, our machines are able to meet all the requirements of the customer, creating poker paper with good (uniformity, toughness and weight).
3. Product Features
(1) Magnetic powder - pneumatic shaft unwinding structure, semi-automatic tension setting & control, make that paper smooth and balanced transmission.
(2) Double corona treatment to optimize web surface molecular structure according to demand for better adhesion.
(3) Custom high-precision T-die, internal heating type, the minimum coating amount of 8 microns, the thickness of the error does not exceed 5%.
(4) The multiple use of the curved flattening roller allows the paper to always maintain a smooth surface and moderate tension to enhance the quality of the product.
(5) Surface friction rewinding, adjustable pressure on both side, compact rewinding with neat edges.
B. Double corona treatment to optimize web surface molecular structure according to demand for better adhesion:
C. Custom high-precision T-die, internal heating type, the minimum coating amount of 8 microns, the thickness of the error does not exceed 5%:
D. The multiple use of the curved flattening roller allows the paper to always maintain a smooth surface and moderate tension to enhance the quality of the product:
E. Surface friction rewinding, adjustable pressure on both side, compact rewinding with neat edges:
F. After several tests in our workshop, our client have been satisfied with the products, these products will enter the next process:

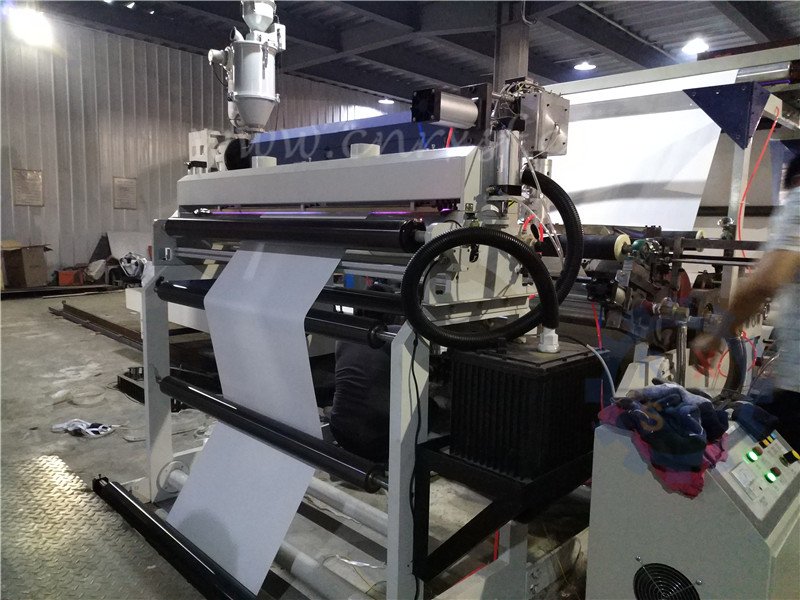

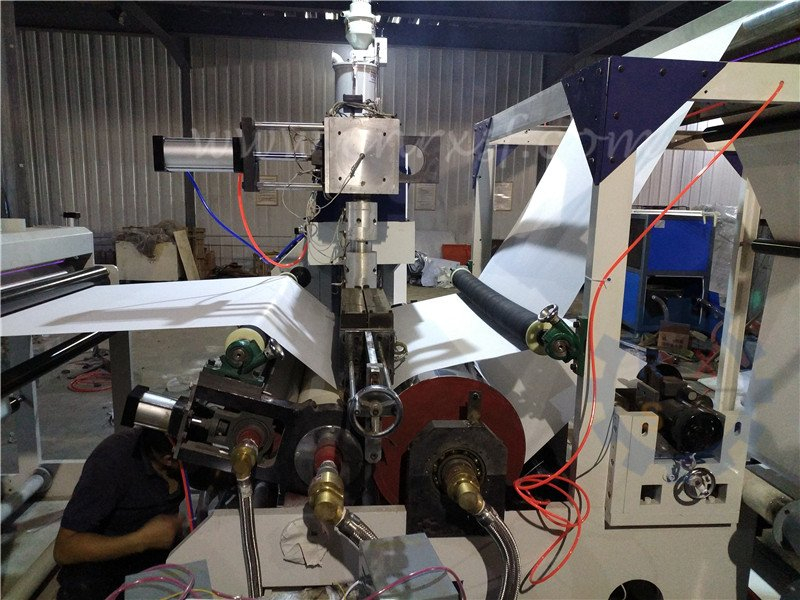

G. The entire production line requires 2-3 workers to operate, PLC control, uninterrupted operation:
Through this link to view the video: https://youtu.be/Wem_TWWDCMw
B. Double corona treatment to optimize web surface molecular structure according to demand for better adhesion:
C. Custom high-precision T-die, internal heating type, the minimum coating amount of 8 microns, the thickness of the error does not exceed 5%:
D. The multiple use of the curved flattening roller allows the paper to always maintain a smooth surface and moderate tension to enhance the quality of the product:
E. Surface friction rewinding, adjustable pressure on both side, compact rewinding with neat edges:
F. After several tests in our workshop, our client have been satisfied with the products, these products will enter the next process:
G. The entire production line requires 2-3 workers to operate, PLC control, uninterrupted operation:
Through this link to view the video: https://youtu.be/Wem_TWWDCMw
5. Packaging and shipping

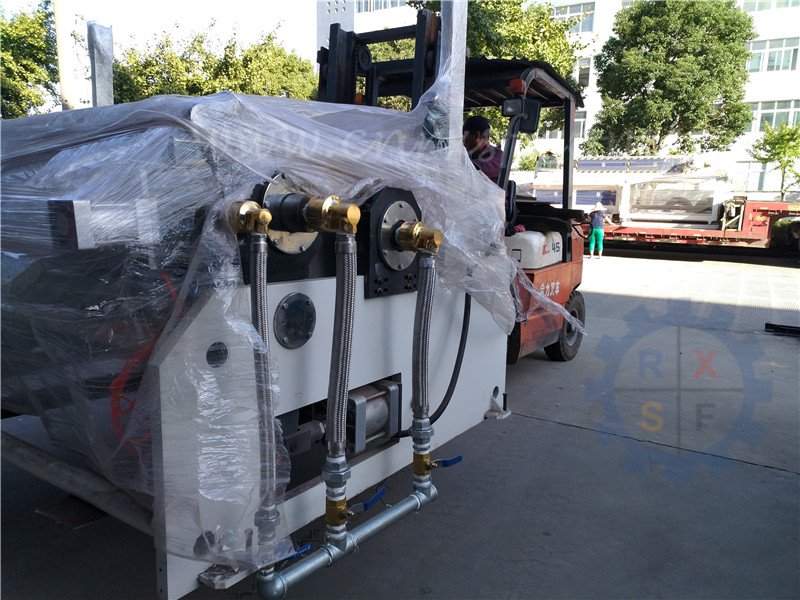

A. Before the delivery, we will emptying the cooling water, locking the valve, brushing the anti-rust oil, and then wrapping each part with plastic film:

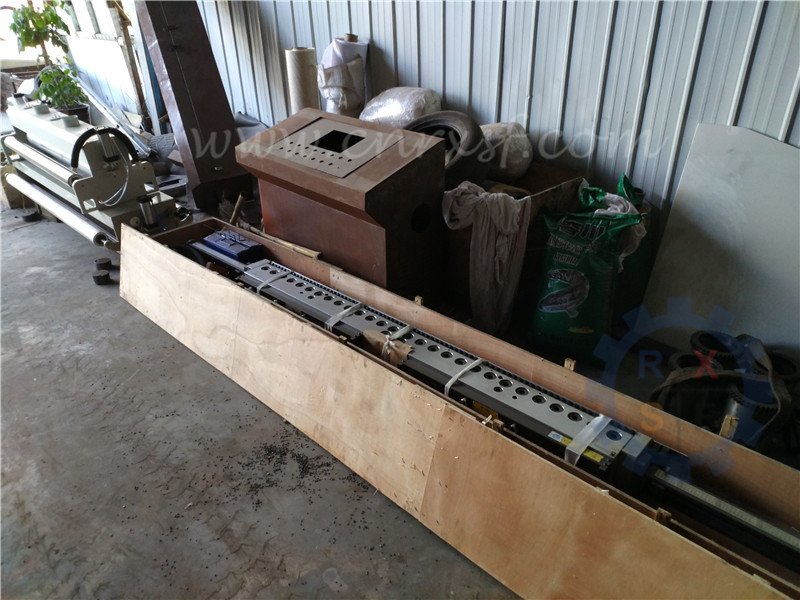

B. T-die, corona processor and other vulnerable parts, will be packaged separately:

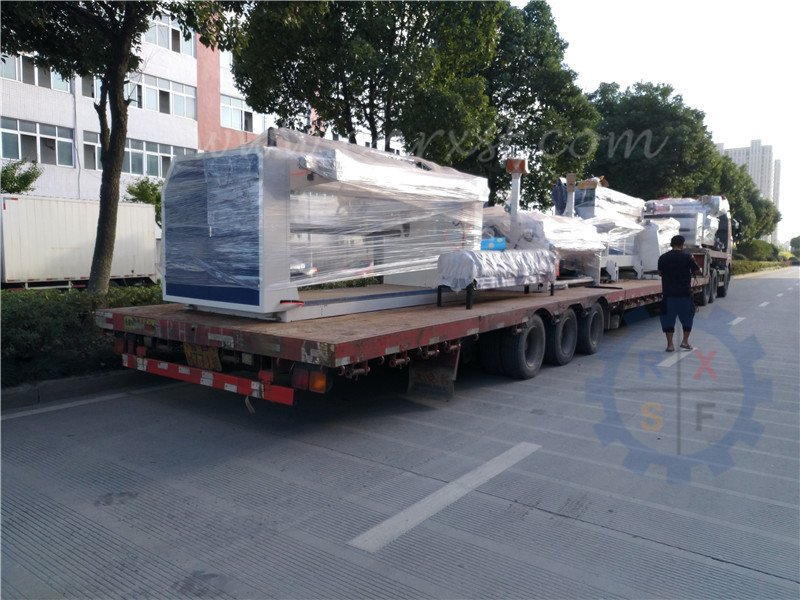

C. After the truck / container has been loaded, the chief engineer will conduct a checklist and then supervise the subsequent bundling / fastening work to ensure that the machine is delivered intact to the customer:
