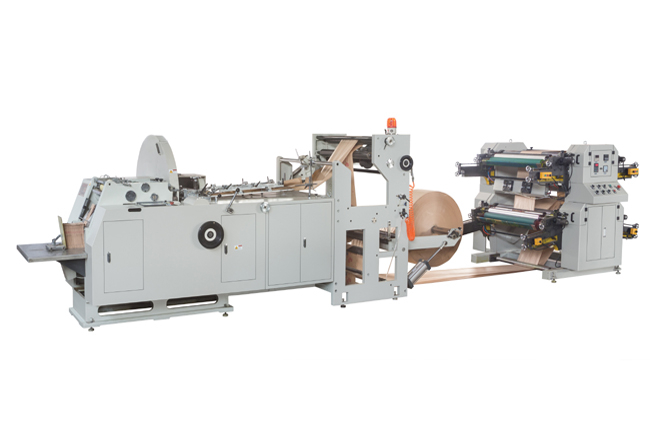

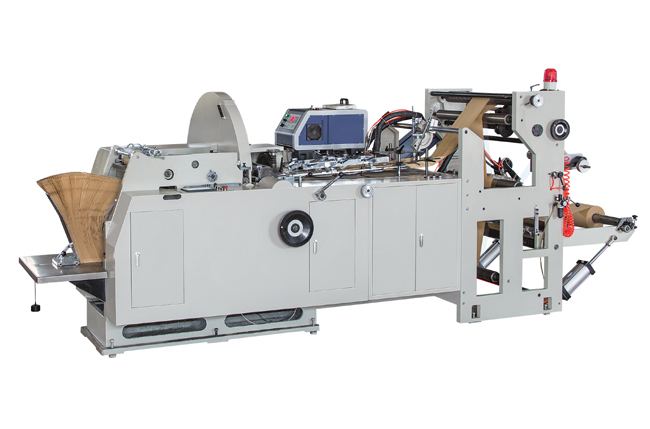

RXZD--400/600+YT-4800 Automatic High Speed Paper Bag Machine With Flexo Printing Machine Introduction:
This paper bag machine forming the paper bag in one process from roll paper, printing, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.
Features:
1. Controls bag length through the human-machine touch screen interface.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. The machine has automatic counting system. The user can set a number to count.
4. “foolproof” style automatic constant tension control system using the United Stated Bellofram precision controller. The tension will be just right from beginning to end.
5. Equipped with an accurate photocell system for printed mark tracking,Color mark error stopping system.
6. Double photoelectric sensor limit automatic correction control system
7. Material lifting adopt pneumatic lift structure.
8. Automatic oil lubrication system.
9. Accurate colour register.
10. Lift and lower the printing plate cylinder Automatic, it will automatically stir the printing ink after lifting.
11. The printing ink is spread by the knurled cylinder with even ink colour.
12. 360°continuous and adjustable longitudinal register device. Technical Parameter:
Type | RXZD-400 | RXZD-600 |
Cutting Length (C) | 150-460 mm | 230-625 mm |
Bag Length (H) | 145-455 mm | 225-620 mm |
Bag Width (L) | 70-280 mm | 70-280 mm |
Gusset (W) | 0-100 mm | 0-100 mm |
Standard flap (P) | 12-20 mm | 12-20 mm |
Max. Speed | 400 pcs/min | 400 pcs/min |
Max. reel weight | 400 Kg | 400 Kg |
Max.Roll Diametr | 1000 mm | 1000 mm |
Reel inner diameter | 76 mm | 76 mm | |
Paper specification | 30 -80 gsm | 30-80 gsm | |
Printing Color | 4 Colors | 4 Color |
Printing Width | 720 mm | 720 mm |
Printing Length | 200-800 mm | 200-800 mm |
Max.Printing Speed | 80 m/min | 80 m/min |
Overprint Precision | ±0.2 mm | ±0.2 mm |
Thickness of Plate | 2.38 mm | 2.38 mm |
|
Web edge control system | Double photoelectric automatic correction control system |
Web tension control system | Automatic constant tension control system |
|
Automatic counting system | YES | YES |
Air pressure | ≥0.12cmm, 0.4~1Mpa | ≥0.12cmm, 0.4~1Mpa |
Driven motor | Double servo motor | Double servo motor |
Power | 9 kw | 9 kw |
Weight | 4700 Kg | 4800 Kg |
Overall dimension | 6700X1650X1850 mm | 6800X1650X1850 mm |
