1.Main Technical Parameters
Model | 1300 | 1600 |
Material Width(mm) | 1300 | 1600 |
Unwinding diameter(mm) | 600 | 800 |
Rewinding diameter(mm) | 150/200 | 150/200 |
Inner diameter of unwinding&rewinding(mm) | 26&52&76 (1&2&3 inch) | 26&52&76 (1&2&3 inch) |
Slitting precision(mm) | <0.5 | <0.5 |
Minimum slitting width(mm) | 12-1300 | 12-1600 |
Speed(m/min) | 10-100 | 10-100 |
Slitting blades | Straight/ circular/ air | Straight/ circular/ air |
Total power(kw) | 4 | 5.5 |
size(M) | 1.1*1.9*1.35 | 1.1*2.2*1.35 |
Weight(kg) | 1800 | 2300 |
2.Comprehensive Description
This machine is specially designed for BOPP sealing tape. It uses embossed guide rollers after Teflon non-stick coating, so it does not stick the film during the web runing. At the unwinding, equipped with curved flattening roller to prevent wrinkles. After the slitting, the use of plastic slip air shaft shaft sleeve to flat tension. This machine is suitable for the manufacture of more than 12 mm width BOPP adhesive tape, whichwidely using for flexible packaging sealing.
3. Product Features
(1) At the unwinding, equipped with curved flattening roller to prevent wrinkles
(2) The guide rollers embossed and coating with teflon non-stick coating, not stick the tape during the web runing
(3) Double air-shaft center curly rewinding, four-station (four air shaft) alternate operations, to maximize efficiency
(4) After the slitting, the use of plastic slip air shaft sleeve to balance tension, ensure each roller of finished tape is neat and uniform
(5) Integrated control system, automatic meter, easy to control the finished product length
4. Details and photos
1. Every detail will be described in detail by text and pictures, as confirmation.
2. We provide customized manufacture according to customer demand.
3. manufactured in accordance with European CE safety standards.

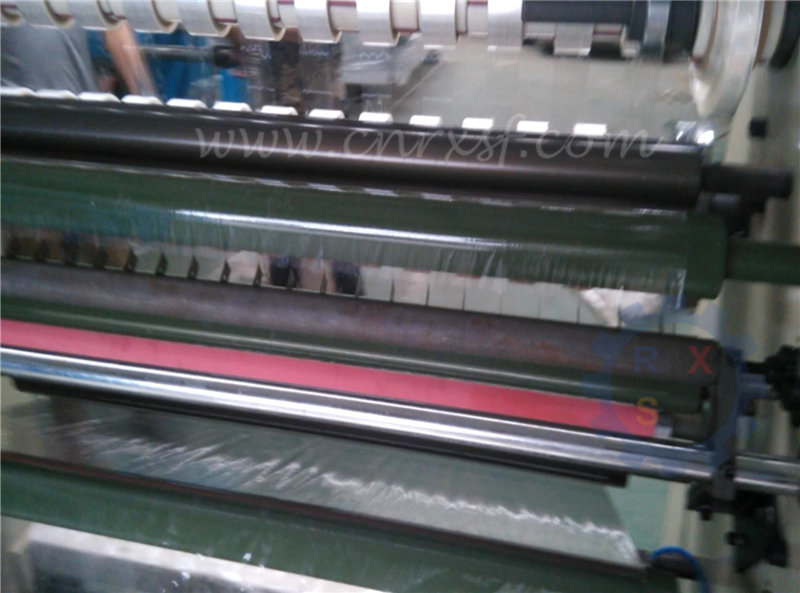

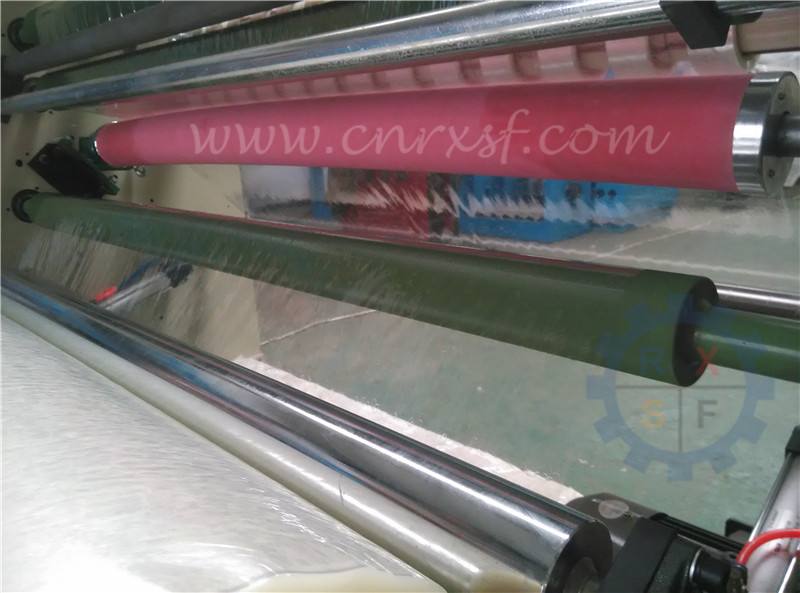

A. At the unwinding, equipped with curved flattening roller to prevent wrinkles:

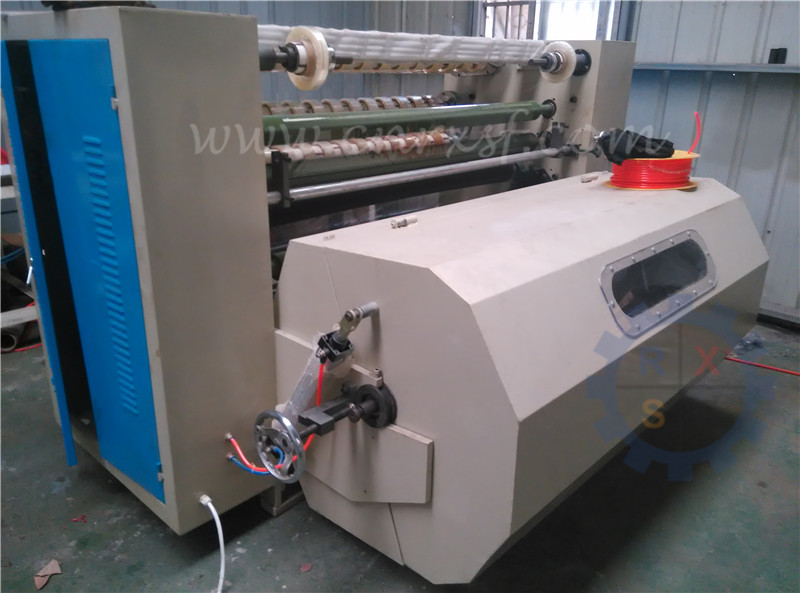

B. Unwinding oven is an option which moderate heating can be more easily peel off large roller and drastically reduce noise:

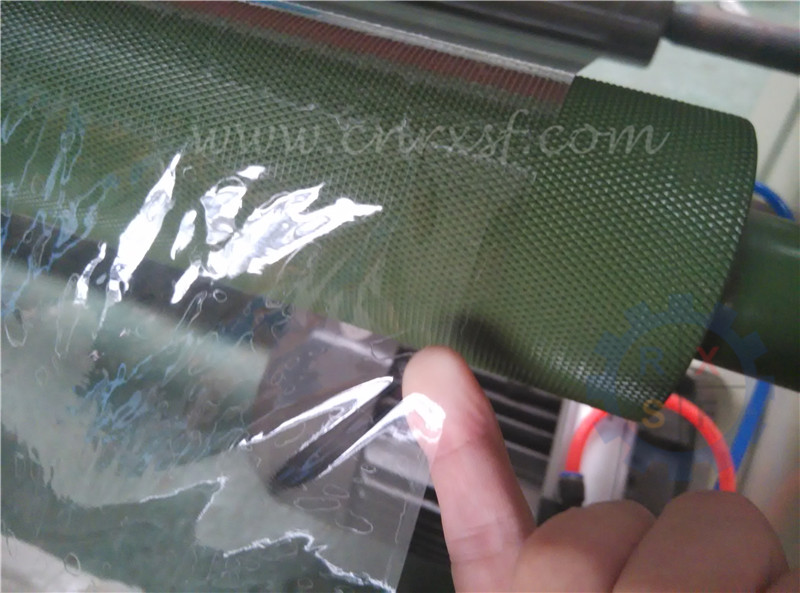

C. The guide rollers embossed and coating with teflon non-stick coating, not stick the tape during the web runing:

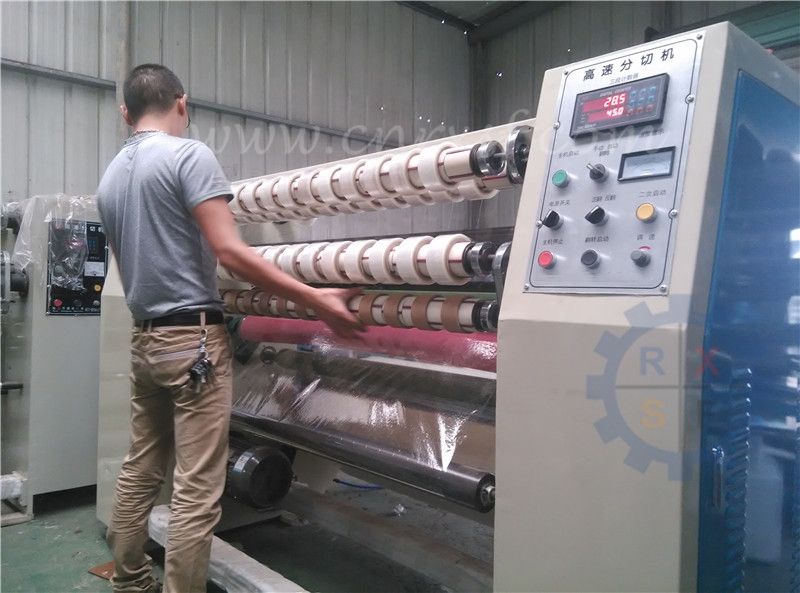

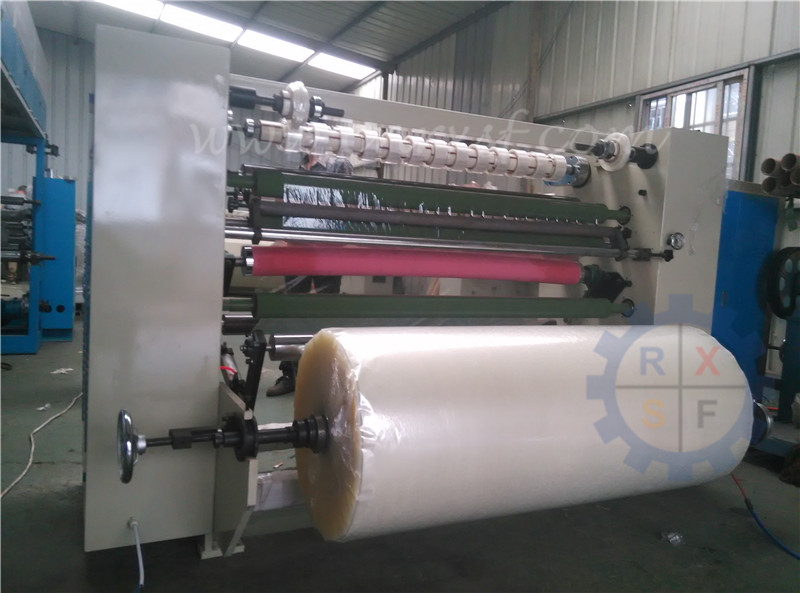

D. Double air-shaft center curly rewinding, four-station (four air shaft) alternate operations, to maximize efficiency:

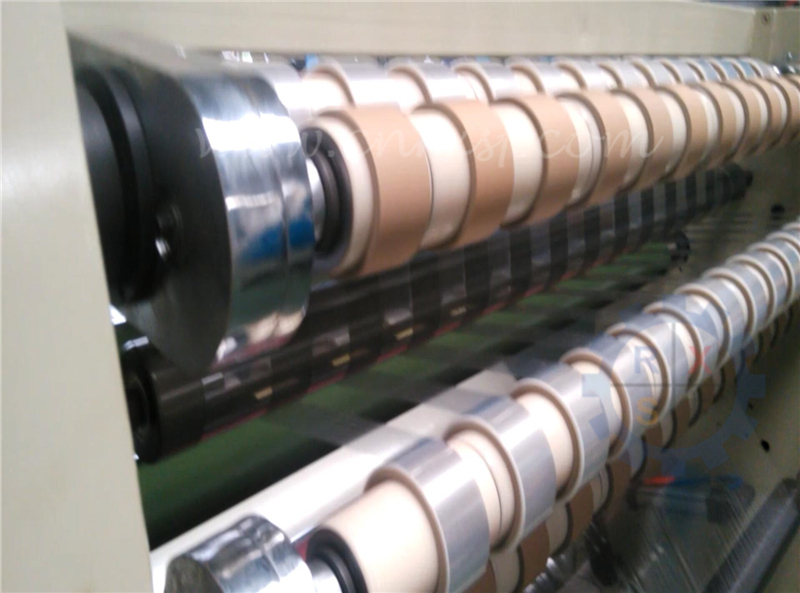

E. After the slitting, the use of plastic slip air shaft shaft sleeve to balance tension, ensure each roller of finished tape is neat and uniform:

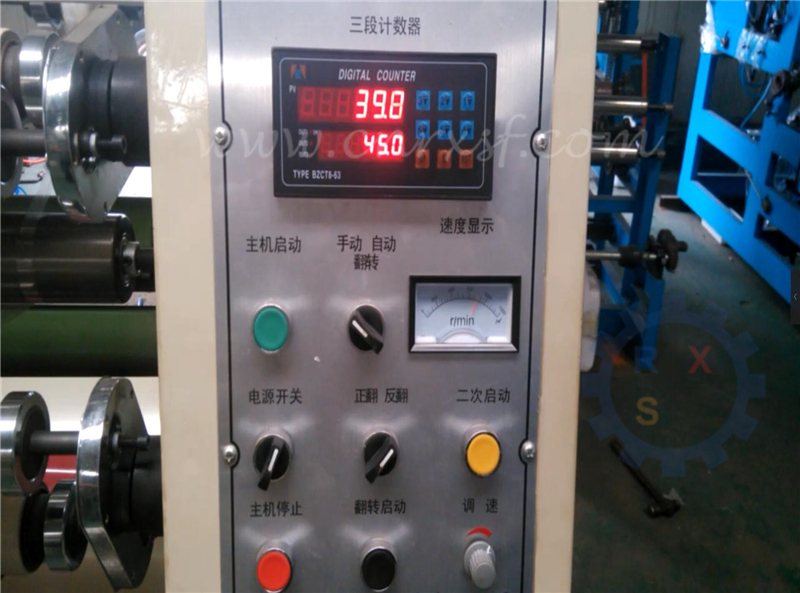

F. Integrated control system, automatic meter, easy to control the finished product length:

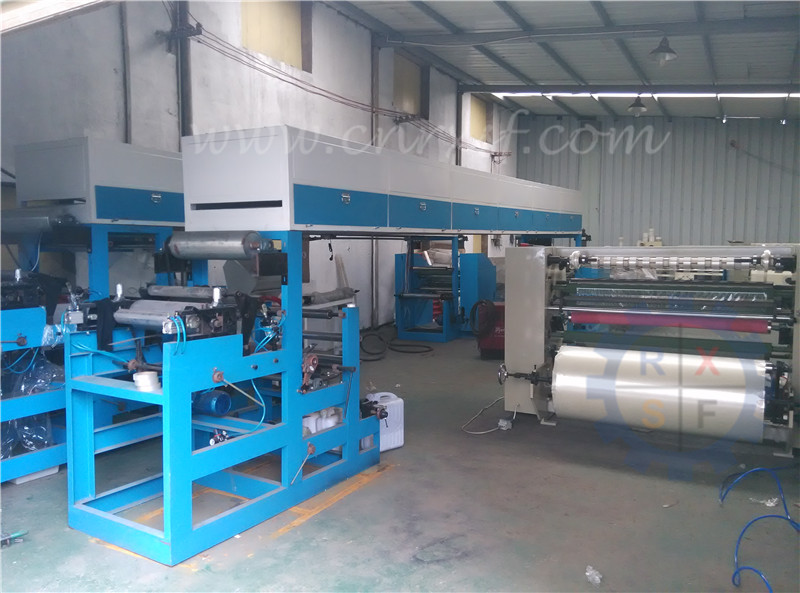

G. We can also provide BOPP coating machine with two-color gravure printing (optional), to achieve "printing - coating - slitting" one-stop production line operations:
Through this link, to view the video of the machine running: https://youtu.be/6yXsNJaYa3I 5. Packaging and shipping
A. After coated with anti-rust oil, the use of PE film winding:
B. According to the requirements of customers, the use of wooden box packaging:

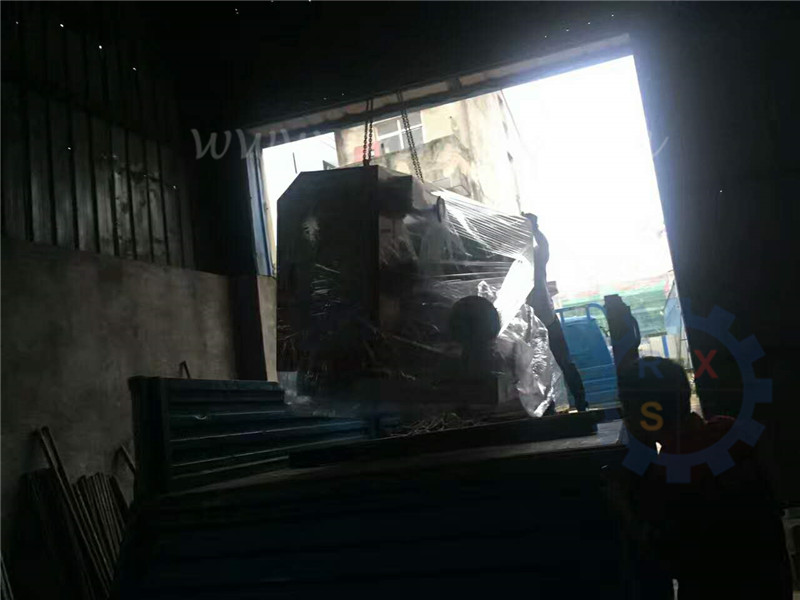

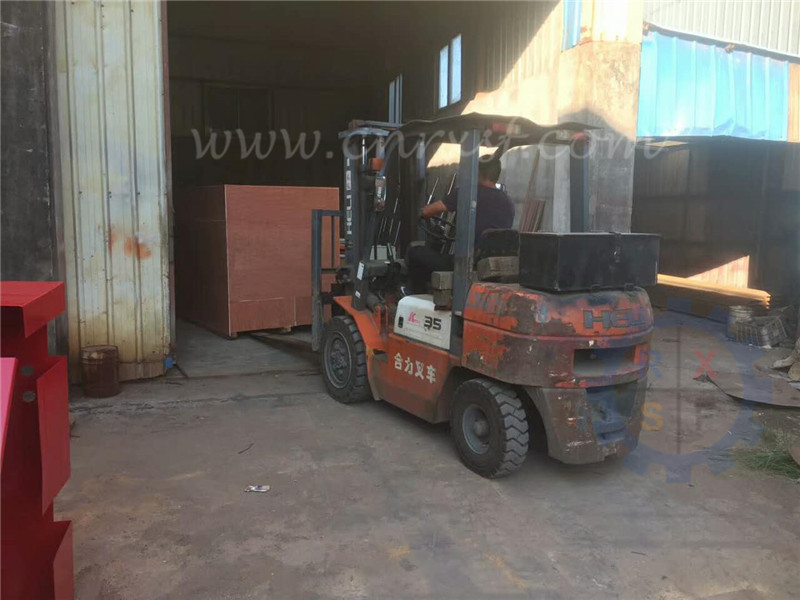

C. We will be responsible for loading the truck or container, and affixed the corresponding shipping label (mark):
6. Trading terms and after sales service
(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.
(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.
(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.
(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.
(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.
(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.
(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.
(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.
7. Documents
A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;
B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
